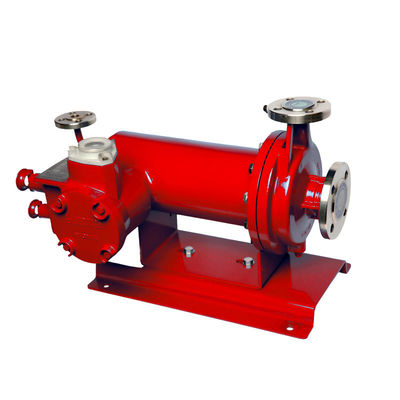

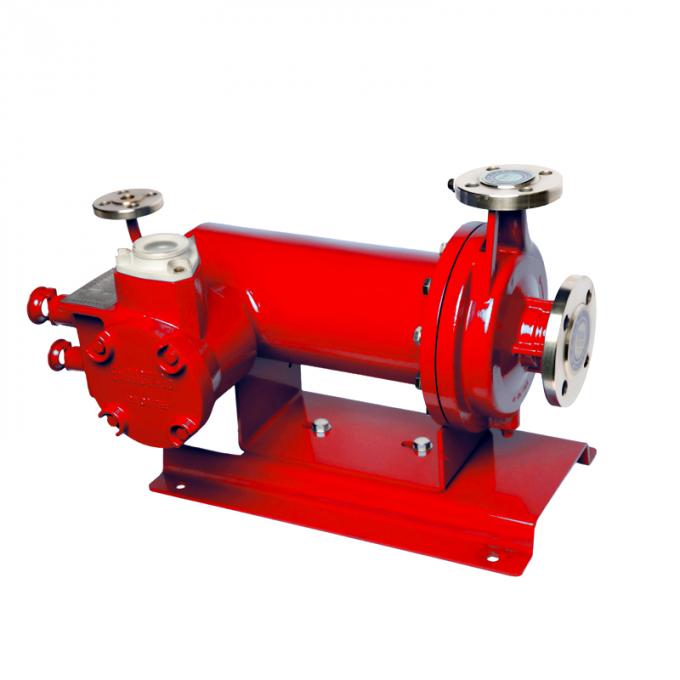

Horizontal Canned Motor Pump for Toxic Fluids
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | R |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | R | Product Name: | R Series Reversed Circulation Canned Motor Pump |
| Color: | Red, Blue Customized | Flow: | 1000m3/h |
| Pressure: | 2.5MPa | Lift: | 190m |
| Temperature: | ～+120℃ | Power: | 160kW |
| Application: | Petroleum, Chemical, Pharmaceutical, Electroplating | Viscosity: | 100mm/s |
| High Light: | horizontal non clog centrifugal pump,Circulation canned pump,Non seal canned pump |
||
Product Description

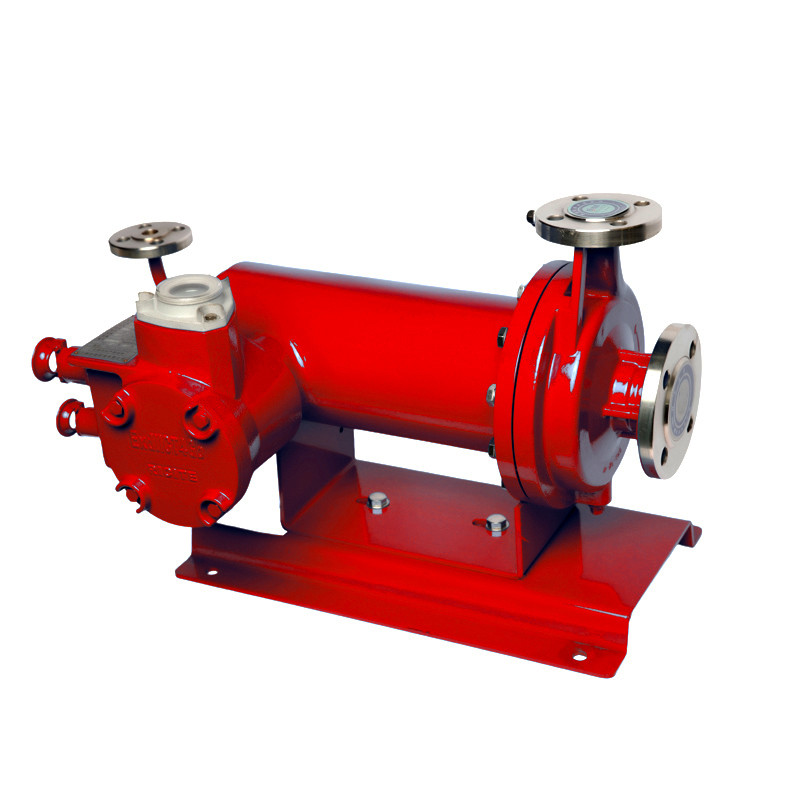

R Series Reversed Circulation Canned Motor Pump
DESCRIPTION
The reverse circulation type is suitable for conveying easily vaporized liquids, and its characteristic is that the lubrication and cooling path is opposite to the basic type, so it is called the reverse circulation type. This type of pump itself does not require an exhaust valve, and its reverse circulation pipeline can discharge the motor-circulating liquid into the gas phase zone of the liquid inlet tank, ensuring that there is no gas present in the pump and motor cavities, ensuring lubrication of bearings and cooling of the motor. This structure is suitable for conveying low-temperature liquefied gases, such as LPG, LNG, and other low-density easily vaporized liquids.
Vertical Application and Characteristics of Reverse Circulation Canned Motor Pump
1. Refining process and oil and gas treatment plant;
2. LPG filling station and natural gas treatment:
3. Other similar working conditions such as liquid ammonia, and liquid chlorine;
4. The LPG pump is a surface pump, usually in a vertical structure:
5. The type is divided into single-stage and multi-stage, with discrete and horizontal structures;
6. Extremely suitable for the transportation of low-temperature materials (LPG)
7. The temperature range for transporting LPG is -120C~180C;
8. Design pressure ≤ 2.5MPa.
ADVANTAGES
(1) Long service life, automatic hydraulic thrust balance system combined with silicon carbide bearings to obtain high service life;
(2) High efficiency, optimized motor design and high-efficiency hydraulic research, achieved excellent energy efficiency;
(3) High reliability, advanced processing technology, high-tech CNC equipment, and perfect testing to ensure the stability of product performance;
(4) Monitor bearing wear to realize online monitoring and automatic control;
(5) Secondary sealing to ensure the safety of the environmental even in the accident situation.
FEATURES
Characteristics of Canned Motor Pump
Transporting liquids completely leak-free, suitable for transporting harmful, highly corrosive, flammable, explosive, expensive, and radioactive liquids that are harmful to human health
Not able to inhale air or other things from the outside, suitable for the operation of vacuum systems and occasions where it deteriorates upon contact with external air;
There is no need to inject lubricating and sealing fluids, which saves the trouble of injecting oil and does not pollute the conveying fluid;
Suitable for conveying high temperature, high pressure, ultra-low temperature, and high melting point liquids, utilizing the characteristics of this pump without shaft seals to solve the above-mentioned special liquids that are difficult to solve for pumps with shaft seals:
The motor and pump are integrated and adopt a building block structure, which is very compact, so the volume is small, the weight is light, and the floor area is small. There is no need to be skilled in installation. There is no cooling motor fan, so the noise during operation is very low.
The main maintenance only involves replacing bearings, thus reducing the later operating costs.
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER | VISCOSITY | PRESSURE | REMARKS |
| R Series (reverse circulation) canned motor pump | Reverse circulation(R series) | 1000m3/h | 190m | ～+120℃ | 160kW | 100mm/s | 2.5MPa |
Suitable for vaporized medium |

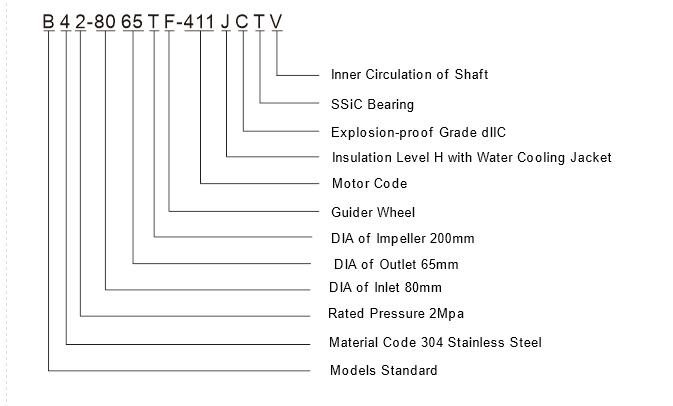

MODEL DESCRIPTION
MATERIALS
| CODE | 4 | 5 | 6 | 7 | |
| WETTED PARTS | 304 | 304L | 316 | 316L | |
| Gasket | Pump | High temperature | Graphite winded | ||
| Standard | PTFE | ||||
| Motor | PTFE | ||||
| Can | Hastelloy Alloy -C | Hastelloy Alloy -C | |||
| Shaft | 304/301 | 304L | 316 | 316L | |
| Shaft sleeve, Thrust ring | Stellite | ||||
| SSiC | |||||
| Bearing | Graphite-impregnated furan resin, SSiC | ||||

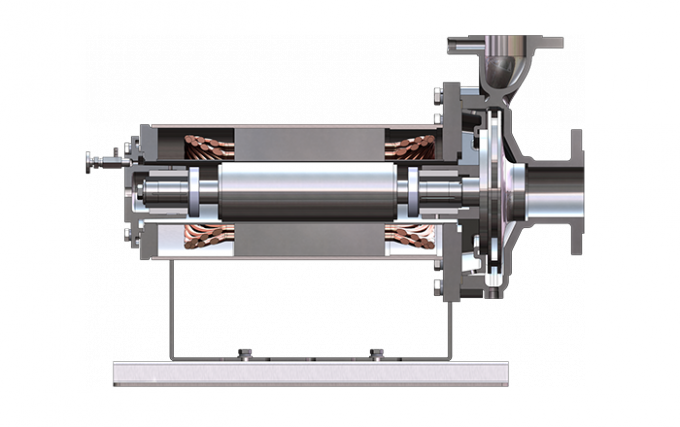

SECTIONAL DRAWING
MODELS
|
No. |
Pump Model |
Speed | Power (KW) | |||
| n=2900r/min | 介质密度(Medium Density(g/cm)) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 1 | 4025R | 3.6 | 20 | 1.1 | 1.5 | 2.2 |
| 6 | 19 | 1.5 | 2.2 | 2.2 | ||
| 7.2 | 17 | 1.5 | 2.2 | 2.2 | ||
| 2 | 4025S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 5.5 | 6.3 | ||
| 3 | 4025T | 5.4 | 62 | 5.5 | 6.3 | 7.5 |
| 9 | 60 | 5.5 | 7.5 | 11 | ||
| 10 | 58 | 5.5 | 7.5 | 11 | ||
| 4 | 5040R | 7.2 | 17 | 1.1 | 1.5 | 2.2 |
| 12 | 15 | 1.5 | 2.2 | 3 | ||
| 13.5 | 14.5 | 1.5 | 2.2 | 3 | ||
| 5 | 5040S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 3.7 | 5.5 | ||
| 6 | 5040T | 10.8 | 52 | 5.5 | 7.5 | 11 |
| 18 | 49 | 6.3 | 11 | 15 | ||
| 21 | 46 | 7.5 | 11 | 15 | ||
| 7 | 5040U | 7.2 | 102 | 15 | 18.5 | 22 |
| 12 | 98 | 15 | 18.5 | 25 | ||
| 14.4 | 94 | 15 | 18.5 | 25 | ||
| 8 | 6550R | 14.4 | 17 | 2.2 | 3 | 5.5 |
| 24 | 14 | 3 | 3.7 | 5.5 | ||
| 28.8 | 12 | 3 | 3.7 | 5.5 | ||
| 9 | 6550S | 14.4 | 30 | 3.7 | 5.5 | 6.3 |
| 24 | 27 | 3.7 | 5.5 | 7.5 | ||
| 28.8 | 24 | 5.5 | 6.3 | 7.5 | ||
| 10 | 6550T | 14.4 | 52 | 7.5 | 11 | 15 |
| 24 | 50 | 11 | 15 | 18.5 | ||
| 28.8 | 46 | 11 | 15 | 18.5 | ||
| 11 | 6550U | 21.6 | 86 | 18.5 | 22 | 30 |
| 36 | 80 | 18.5 | 25 | 37 | ||
| 40 | 78 | 22 | 30 | 37 | ||
|
No. |
Pump Model |
Speed | Power(Kw) | |||
| n=2900r/min | (Medium Density(g/cm3) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 12 | 8065R | 28.8 | 15 | 3 | 5.5 | 6.3 |
| 48 | 12 | 3.7 | 5.5 | 6.3 | ||
| 55 | 10 | 3.7 | 5.5 | 6.3 | ||
| 13 | 8065S | 36 | 30 | 6.3 | 11 | 15 |
| 60 | 22 | 7.5 | 11 | 15 | ||
| 66 | 18 | 7.5 | 11 | 15 | ||
| 14 | 8065T | 30 | 53 | 11 | 15 | 22 |
| 50 | 50 | 15 | 18.5 | 25 | ||
| 58 | 42 | 15 | 18.5 | 25 | ||
| 15 | 8065U | 28.8 | 80 | 18.5 | 22 | 30 |
| 48 | 76 | 22 | 25 | 37 | ||
| 57.6 | 70 | 22 | 30 | 45 | ||
| 16 | 1080S | 54 | 24 | 11 | 15 | 18.5 |
| 90 | 20 | 11 | 15 | 18.5 | ||
| 102 | 16 | 11 | 15 | 18.5 | ||
| 17 | 1080T | 60 | 50 | 22 | 30 | 37 |
| 100 | 45 | 25 | 30 | 45 | ||
| 120 | 36 | 25 | 30 | 45 | ||
| 18 | 1080U | 60 | 80 | 37 | 45 | 55 |
| 100 | 72 | 45 | 55 | 75 | ||
| 120 | 64 | 45 | 55 | 75 | ||
| 19 | 1080V | 54 | 120 | 55 | 65 | 90 |
| 90 | 100 | 55 | 75 | 110 | ||
| 108 | 80 | 55 | 75 | 110 | ||
| 20 | 1210T | 108 | 45 | 37 | 45 | 55 |
| 180 | 38 | 45 | 45 | 75 | ||
| 200 | 35 | 45 | 45 | 75 | ||
| 21 | 1210U | 108 | 80 | 55 | 65 | 90 |
| 180 | 70 | 65 | 75 | 110 | ||
| 216 | 60 | 65 | 90 | 110 | ||
| 22 | 1210V | 90 | 128 | 75 | 90 | 132 |
| 150 | 120 | 90 | 132 | 200 | ||
| 170 | 110 | 110 | 145 | 200 | ||
