Hermetic Sealless Canned Motor Pump for Chemicals
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | C |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | C | Product Name: | C Series Standard Canned Motor Pump |
| Color: | Red,blue Customized | Flow: | 300m3/h |
| Lift: | 200m | Temperature: | ～+350℃ |
| Power: | 132kW | Viscosity: | 100mm/s |
| Pressure: | 2.5MPa | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
| High Light: | sealless canned motor pump,Hermetic Canned Motor Pumps,canned motor pump 200m lift |
||
Product Description

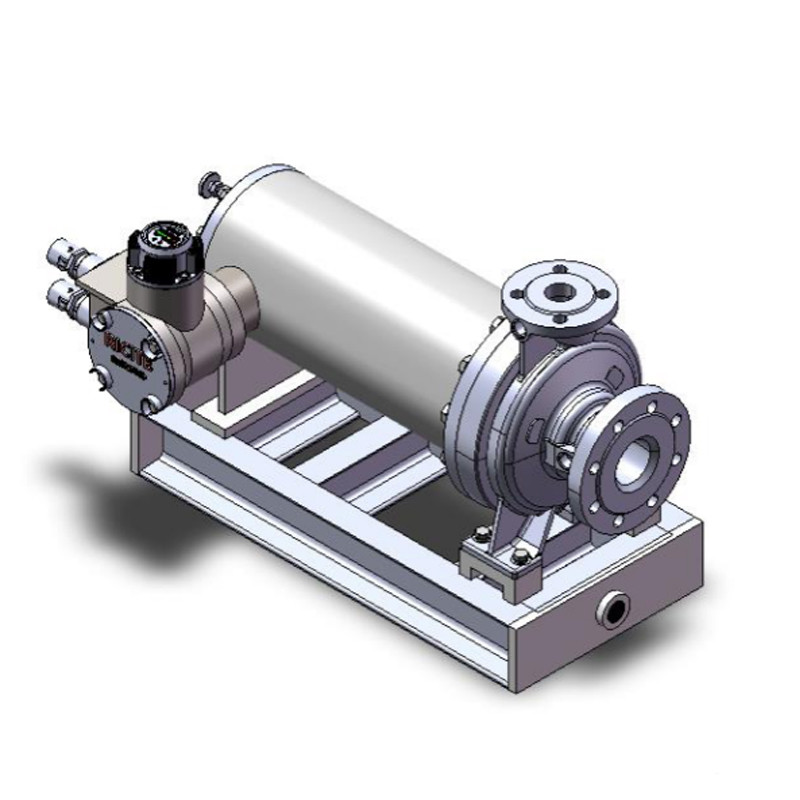

C series standard canned motor pump
DESCRIPTION
The chemical canned pump is composed of a shielding motor and a pump. It is an unsealed pump that breaks the traditional rotating shaft sealing device of the pump and perfectly achieves leak free operation. There are many types of canned pumps, including basic type, reverse circulation type, high-temperature type, high melting point type, high-pressure type, etc., which are widely used in chemical industry, medicine, petroleum, textile, nuclear power, military industry, urban water supply and drainage, and fire pressurization.
The temperature of the conveying medium does not exceed 350 ℃, and the head does not exceed 200m. Other types of canned pumps are variants and improvements of the basic type, including dead and reverse circulation. This type of canned pump has the opposite direction of liquid flow for bearing lubrication, cooling, and motor cooling compared to the basic type.
C series canned motor pump is a new generation of chemical canned motor pump. It adopts international standard design, the maximum operating flow is 1200m3/h, the maximum head is 600m, the temperature range is -120-350°C, and the maximum pressure of the system design is 20MPa.
ADVANTAGES
(1) Long service life, automatic hydraulic thrust balance system combined with silicon carbide bearings to obtain high service life;
(2) High efficiency, optimized motor design and high-efficiency hydraulic research, achieved excellent energy efficiency;
(3) High reliability, advanced processing technology, high-tech CNC equipment and perfect testing to ensure the stability of product performance;
(4) Monitor bearing wear to realize online monitoring and automatic control;
(5) Secondary sealing to ensure the safety to the environmental even in the accident situation.
FEATURES
Canned motor pump is composed by canned motor and pump, the inner surface of the stator and the outer surface of the rotor are covered by a thin-walled non-magnetic corrosion-resistant metal, so the stator winding, the rotor core will not be eroded by the conveying liquid, due to they are completely separated. In addition, the impeller is directly installed at the shaft extension of the rotor, the entire rotor is immersed in the conveying liquid, no rotating parts extend outside, is a structure without leakage, so it has the following advantages
1. The integrated structure of the motor and pump adopts static sealing, making the electric pump completely leak free.
2. The fully enclosed and leak free structure can transport toxic and harmful liquid substances.
3. The use of a shielded water-cooled motor and the elimination of a cooling fan make the pump operate with low noise and silence, suitable for situations with high environmental noise requirements.
4. The use of graphite sliding bearings lubricated with conveying media reduces operating noise and eliminates the need for manual refueling, reducing maintenance costs. In recent years, bearing materials have also increased, such as silicon carbide (SIC) and superhard, with a service life better than graphite bearings.
5. The vertical structure can be installed on the pipeline like a valve, making installation convenient and fast. During maintenance, only the motor and impeller need to be pulled out without the need to remove the pipeline.
6. It can be installed and operated in conjunction with shock absorbers or shock pads, making the noise of the electric pump lower during operation.
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER | VISICOSITY | PRESSURE | REMARKS |
| C series standard canned motor pump | C series standard | 300m3/h | 200m | ～+350℃ | 132kW | 100mm/s | 2.5MPa |
C series standard chemical canned motor pump is horizontal, single-stage, single-suction centrifugal pump, comply with DIN24256/ISO2858 standards. Conveying low-temperature or high-temperature liquids, neutral or corrosive liquids, with or without solids liquids, especially suitable for: chemical and petrochemical industry; Oil refineries |
MODEL DESCRIPTION
MATERIALS
| CODE | 4 | 5 | 6 | 7 | |
| WETTED PARTS | 304 | 304L | 316 | 316L | |
| Gasket | Pump | High temperature | Graphite winded | ||
| Standard | PTFE | ||||
| Motor | PTFE | ||||
| Can | Hastelloy Alloy -C | Hastelloy Alloy -C | |||
| Shaft | 304/301 | 304L | 316 | 316L | |
| Shaft sleeve, Thrust ring | Stellite | ||||
| SSiC | |||||
| Bearing | Graphite impregnated furan resin, SSiC | ||||
SECTIONAL DRAWING
MODELS
|
No. |
Pump Model |
Speed | Power (KW) | |||
| n=2900r/min | 介质密度(Medium Density(g/cm)) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 1 | 4025R | 3.6 | 20 | 1.1 | 1.5 | 2.2 |
| 6 | 19 | 1.5 | 2.2 | 2.2 | ||
| 7.2 | 17 | 1.5 | 2.2 | 2.2 | ||
| 2 | 4025S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 5.5 | 6.3 | ||
| 3 | 4025T | 5.4 | 62 | 5.5 | 6.3 | 7.5 |
| 9 | 60 | 5.5 | 7.5 | 11 | ||
| 10 | 58 | 5.5 | 7.5 | 11 | ||
| 4 | 5040R | 7.2 | 17 | 1.1 | 1.5 | 2.2 |
| 12 | 15 | 1.5 | 2.2 | 3 | ||
| 13.5 | 14.5 | 1.5 | 2.2 | 3 | ||
| 5 | 5040S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 3.7 | 5.5 | ||
| 6 | 5040T | 10.8 | 52 | 5.5 | 7.5 | 11 |
| 18 | 49 | 6.3 | 11 | 15 | ||
| 21 | 46 | 7.5 | 11 | 15 | ||
| 7 | 5040U | 7.2 | 102 | 15 | 18.5 | 22 |
| 12 | 98 | 15 | 18.5 | 25 | ||
| 14.4 | 94 | 15 | 18.5 | 25 | ||
| 8 | 6550R | 14.4 | 17 | 2.2 | 3 | 5.5 |
| 24 | 14 | 3 | 3.7 | 5.5 | ||
| 28.8 | 12 | 3 | 3.7 | 5.5 | ||
| 9 | 6550S | 14.4 | 30 | 3.7 | 5.5 | 6.3 |
| 24 | 27 | 3.7 | 5.5 | 7.5 | ||
| 28.8 | 24 | 5.5 | 6.3 | 7.5 | ||
| 10 | 6550T | 14.4 | 52 | 7.5 | 11 | 15 |
| 24 | 50 | 11 | 15 | 18.5 | ||
| 28.8 | 46 | 11 | 15 | 18.5 | ||
| 11 | 6550U | 21.6 | 86 | 18.5 | 22 | 30 |
| 36 | 80 | 18.5 | 25 | 37 | ||
| 40 | 78 | 22 | 30 | 37 | ||
|
No. |
Pump Model |
Speed | Power(Kw) | |||
| n=2900r/min | (Medium Density(g/cm3) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 12 | 8065R | 28.8 | 15 | 3 | 5.5 | 6.3 |
| 48 | 12 | 3.7 | 5.5 | 6.3 | ||
| 55 | 10 | 3.7 | 5.5 | 6.3 | ||
| 13 | 8065S | 36 | 30 | 6.3 | 11 | 15 |
| 60 | 22 | 7.5 | 11 | 15 | ||
| 66 | 18 | 7.5 | 11 | 15 | ||
| 14 | 8065T | 30 | 53 | 11 | 15 | 22 |
| 50 | 50 | 15 | 18.5 | 25 | ||
| 58 | 42 | 15 | 18.5 | 25 | ||
| 15 | 8065U | 28.8 | 80 | 18.5 | 22 | 30 |
| 48 | 76 | 22 | 25 | 37 | ||
| 57.6 | 70 | 22 | 30 | 45 | ||
| 16 | 1080S | 54 | 24 | 11 | 15 | 18.5 |
| 90 | 20 | 11 | 15 | 18.5 | ||
| 102 | 16 | 11 | 15 | 18.5 | ||
| 17 | 1080T | 60 | 50 | 22 | 30 | 37 |
| 100 | 45 | 25 | 30 | 45 | ||
| 120 | 36 | 25 | 30 | 45 | ||
| 18 | 1080U | 60 | 80 | 37 | 45 | 55 |
| 100 | 72 | 45 | 55 | 75 | ||
| 120 | 64 | 45 | 55 | 75 | ||
| 19 | 1080V | 54 | 120 | 55 | 65 | 90 |
| 90 | 100 | 55 | 75 | 110 | ||
| 108 | 80 | 55 | 75 | 110 | ||
| 20 | 1210T | 108 | 45 | 37 | 45 | 55 |
| 180 | 38 | 45 | 45 | 75 | ||
| 200 | 35 | 45 | 45 | 75 | ||
| 21 | 1210U | 108 | 80 | 55 | 65 | 90 |
| 180 | 70 | 65 | 75 | 110 | ||
| 216 | 60 | 65 | 90 | 110 | ||
| 22 | 1210V | 90 | 128 | 75 | 90 | 132 |
| 150 | 120 | 90 | 132 | 200 | ||
| 170 | 110 | 110 | 145 | 200 | ||
