Self Priming Canned Motor Pump for Organnic Chemicals
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | G |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | G | Product Name: | G Type Self-Priming Canned Motor Pump |
| Color: | Red,blue | Flow: | 200m3/h |
| Lift: | 150m | Temperature: | ～+350℃ |
| Power: | 160kW | Viscosity: | 100mm/s |
| Pressure: | 2.5MPa | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
| High Light: | Self Priming Canned Motor Pump,canned pump from china,can motor pumps |
||
Product Description

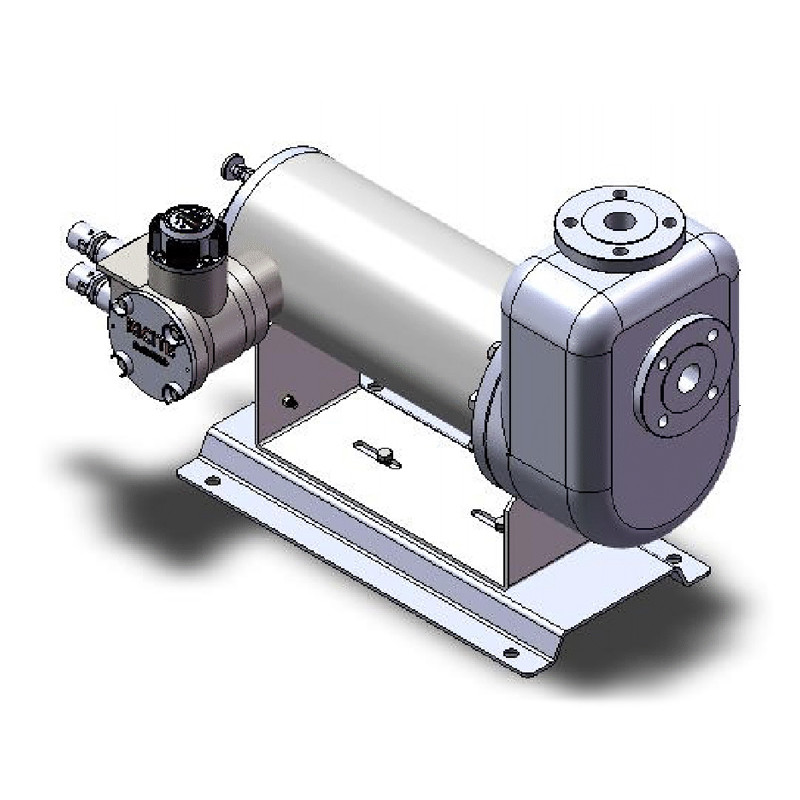

G Type Self-Priming Canned Motor Pump
DESCRIPTION
Self priming type:The suction inlet of the pump is much higher than the center of the impeller. After stopping the pump, when there is no liquid in the suction pipeline, the impeller and the enlarged pump chamber are always filled with liquid. When restarting, there is no need to fill water, and the pump can work. Self priming pumps are particularly suitable for extracting liquids from underground containers.
It adopts international standard design, the maximum operating flow is 1200m3/h, the maximum head is 600m, the temperature range is -120-350°C, and the maximum pressure of the system design is 20MPa.
The drive of an ordinary centrifugal pump is to connect the impeller shaft of the pump with the electric shaft through a coupling, so that the impeller and the electric motor rotate together and work. However, a Canned MotorPump is an unsealed pump, and both the pump and the driving motor are sealed in a pressure vessel filled with the pumped medium.
This pressure vessel only has a static seal and is equipped with a wire group to provide a rotating magnetic field and drive the rotor. This structure eliminates the rotary shaft sealing device that traditional centrifugal pumps have, so it can achieve complete leak free operation.
ADVANTAGES
(1) Long service life, automatic hydraulic thrust balance system combined with silicon carbide bearings to obtain high service life;
(2) High efficiency, optimized motor design and high-efficiency hydraulic research, achieved excellent energy efficiency;
(3) High reliability, advanced processing technology, high-tech CNC equipment and perfect testing to ensure the stability of product performance;
(4) Monitor bearing wear to realize online monitoring and automatic control;
(5) Secondary sealing to ensure the safety to the environmental even in the accident situation.
FEATURES
The Principle and Structural Characteristics of Shielded Pump
The drive of an ordinary centrifugal pump is achieved by connecting the impeller shaft of the pump with the electric shaft through a coupling, allowing the impeller to rotate together with the electric motor to work. A cnanned motor pump is an unsealed pump, and both the pump and the driving motor are sealed in a pressure vessel filled with the pumped medium. This pressure vessel is only statically sealed, and a set of wires is used to provide a rotating magnetic field and drive the rotor.
This structure eliminates the rotary shaft sealing device that traditional centrifugal pumps have, making it completely leak free.
The canned motor pump connects the pump and motor together, and the rotor of the motor and the impeller of the pump are fixed on the same shaft. The shielding sleeve is used to separate the rotor and stator of the motor. The rotor operates in the medium being transported, and its power is transmitted to the rotor through the stator magnetic field.
In addition, the manufacturing of canned pumps is not complicated, and their hydraulic end can be designed and manufactured according to the structural types and relevant standards and specifications commonly used in centrifugal pumps.
Precautions for using Canned motor pump:
1. During normal operation, the outlet valve should not be closed tightly and should be kept slightly open to prevent air blockage in the pump.
2. It is strictly prohibited to operate without liquid or for more than 1 minute to prevent damage to the motor and bearings.
3. It is strictly prohibited to run in reverse for more than 1 minute, as reverse operation may cause abnormal wear of the bearings.
4. It is strictly prohibited to operate under cavitation conditions, otherwise it may cause early wear of the bearings.
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER | VISICOSITY | PRESSURE | REMARKS |
| G Type Self-Priming Canned Motor Pump | (G Series)Self-Priming | 200m3/h | 150m | ～+350℃ | 160kW | 100mm/s | 2.5MPa |
Suitable for pumping liquids from underground vessels, the specially designed double-layer pump casing realizes automatic pumping. |
MODEL DESCRIPTION
MATERIALS
| CODE | 4 | 5 | 6 | 7 | |
| WETTED PARTS | 304 | 304L | 316 | 316L | |
| Gasket | Pump | High temperature | Graphite winded | ||
| Standard | PTFE | ||||
| Motor | PTFE | ||||
| Can | Hastelloy Alloy -C | Hastelloy Alloy -C | |||
| Shaft | 304/301 | 304L | 316 | 316L | |
| Shaft sleeve, Thrust ring | Stellite | ||||
| SSiC | |||||
| Bearing | Graphite impregnated furan resin, SSiC | ||||
SECTIONAL DRAWING
MODELS
|
No. |
Pump Model |
Speed | Power (KW) | |||
| n=2900r/min | 介质密度(Medium Density(g/cm)) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 1 | 4025R | 3.6 | 20 | 1.1 | 1.5 | 2.2 |
| 6 | 19 | 1.5 | 2.2 | 2.2 | ||
| 7.2 | 17 | 1.5 | 2.2 | 2.2 | ||
| 2 | 4025S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 5.5 | 6.3 | ||
| 3 | 4025T | 5.4 | 62 | 5.5 | 6.3 | 7.5 |
| 9 | 60 | 5.5 | 7.5 | 11 | ||
| 10 | 58 | 5.5 | 7.5 | 11 | ||
| 4 | 5040R | 7.2 | 17 | 1.1 | 1.5 | 2.2 |
| 12 | 15 | 1.5 | 2.2 | 3 | ||
| 13.5 | 14.5 | 1.5 | 2.2 | 3 | ||
| 5 | 5040S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 3.7 | 5.5 | ||
| 6 | 5040T | 10.8 | 52 | 5.5 | 7.5 | 11 |
| 18 | 49 | 6.3 | 11 | 15 | ||
| 21 | 46 | 7.5 | 11 | 15 | ||
| 7 | 5040U | 7.2 | 102 | 15 | 18.5 | 22 |
| 12 | 98 | 15 | 18.5 | 25 | ||
| 14.4 | 94 | 15 | 18.5 | 25 | ||
| 8 | 6550R | 14.4 | 17 | 2.2 | 3 | 5.5 |
| 24 | 14 | 3 | 3.7 | 5.5 | ||
| 28.8 | 12 | 3 | 3.7 | 5.5 | ||
| 9 | 6550S | 14.4 | 30 | 3.7 | 5.5 | 6.3 |
| 24 | 27 | 3.7 | 5.5 | 7.5 | ||
| 28.8 | 24 | 5.5 | 6.3 | 7.5 | ||
| 10 | 6550T | 14.4 | 52 | 7.5 | 11 | 15 |
| 24 | 50 | 11 | 15 | 18.5 | ||
| 28.8 | 46 | 11 | 15 | 18.5 | ||
| 11 | 6550U | 21.6 | 86 | 18.5 | 22 | 30 |
| 36 | 80 | 18.5 | 25 | 37 | ||
| 40 | 78 | 22 | 30 | 37 | ||
|
No. |
Pump Model |
Speed | Power(Kw) | |||
| n=2900r/min | (Medium Density(g/cm3) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 12 | 8065R | 28.8 | 15 | 3 | 5.5 | 6.3 |
| 48 | 12 | 3.7 | 5.5 | 6.3 | ||
| 55 | 10 | 3.7 | 5.5 | 6.3 | ||
| 13 | 8065S | 36 | 30 | 6.3 | 11 | 15 |
| 60 | 22 | 7.5 | 11 | 15 | ||
| 66 | 18 | 7.5 | 11 | 15 | ||
| 14 | 8065T | 30 | 53 | 11 | 15 | 22 |
| 50 | 50 | 15 | 18.5 | 25 | ||
| 58 | 42 | 15 | 18.5 | 25 | ||
| 15 | 8065U | 28.8 | 80 | 18.5 | 22 | 30 |
| 48 | 76 | 22 | 25 | 37 | ||
| 57.6 | 70 | 22 | 30 | 45 | ||
| 16 | 1080S | 54 | 24 | 11 | 15 | 18.5 |
| 90 | 20 | 11 | 15 | 18.5 | ||
| 102 | 16 | 11 | 15 | 18.5 | ||
| 17 | 1080T | 60 | 50 | 22 | 30 | 37 |
| 100 | 45 | 25 | 30 | 45 | ||
| 120 | 36 | 25 | 30 | 45 | ||
| 18 | 1080U | 60 | 80 | 37 | 45 | 55 |
| 100 | 72 | 45 | 55 | 75 | ||
| 120 | 64 | 45 | 55 | 75 | ||
| 19 | 1080V | 54 | 120 | 55 | 65 | 90 |
| 90 | 100 | 55 | 75 | 110 | ||
| 108 | 80 | 55 | 75 | 110 | ||
| 20 | 1210T | 108 | 45 | 37 | 45 | 55 |
| 180 | 38 | 45 | 45 | 75 | ||
| 200 | 35 | 45 | 45 | 75 | ||
| 21 | 1210U | 108 | 80 | 55 | 65 | 90 |
| 180 | 70 | 65 | 75 | 110 | ||
| 216 | 60 | 65 | 90 | 110 | ||
| 22 | 1210V | 90 | 128 | 75 | 90 | 132 |
| 150 | 120 | 90 | 132 | 200 | ||
| 170 | 110 | 110 | 145 | 200 | ||
More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
Website: www.ricitepump.com
