Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid

Product Details
Place of Origin: China
Brand Name: RICITE
Model Number: RMD-B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: WOODEN CASE
Delivery Time: 5-8 work dayes
Payment Terms: T/T, , L/C
Supply Ability: 50 sets per day

Detail Information

Place of Origin China Brand Name RICITE
Model Number RMD-B Product Name: Heat Jacket Magnetic Drive Pump
Color: Red,blue Customized Caliber: 32-300mm
Flow: 3.2-1000m3/h Lift: 8-150m
Temperature: ~+350℃ Pressure: 0-1.6Mpa(Customized 1.6-30Mpa As Needed)
Power: 1.1-315KW Application: Petroleum, Chemical, Pharmaceutical, Electroplating
VISCOSITY: <=30*10-6m2/s High Light:

High Percentage Mag drive Centrifugal Pump

,

Low Temperature Mag drive Centrifugal Pump

,

Sulfuric Acid Mag Drive Centrifugal Pump

Product Description

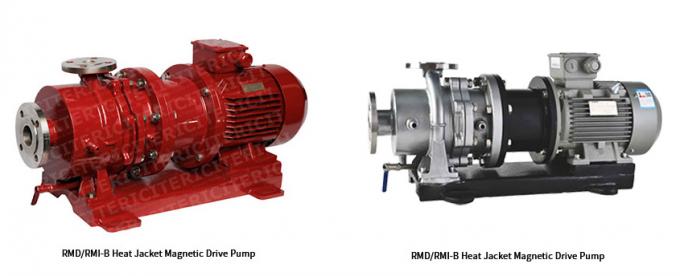

Heat Jacket Magnetic Drive Pump



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0 Description

Heat jacket magnetic drive pump is a new type of magnetic pump, based on ordinary magnetic pump, absorbing the advantages of high-temperature pump, which is widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, and other industries, and can transport flammable, explosive, toxic, purified, and other fluids with continuous work temperature lower than 350 °C



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0Features

1. Heat jacket magnetic drive pump adopts high-performance NdFeB (neodymium iron boron) and SmCo (samarium cobalt) permanent magnets to ensure sufficient magnetic torque;

2. The can structure is designed as unequal sections, which reduces 1/2 damage caused by eddy current compared with the equal sections can;

3. The unique new heat jacket design ensures that the medium will not condense during the transportation process, and when the temperature is too high, the cooling water can be introduced into the jacket to take away over heat, which can effectively ensure the normal operation of the motor and magnet;

4. Adopt hydrodynamic lubrication bearing, which is more reliable than the concentric bearing of the original magnetic pump, longer service life;

5. Adopt a new type heat jacket to ensure that the medium will not crystallize during transportation;

6. Automatic stop device for breaking flow can be an option according to customers’ requirements to avoid the dry run of the pump.



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0Application

Chemical, pharmaceutical, electroplating, petroleum, environmental protection, rare earth separation, smelting, pickling in automobile manufacturing and other fields.



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0Model Coding

Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 4

Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 5



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0PARAMETERS



NAME TYPE FLOW HEAD WORK TEMPERATURE MOTOR POWER VISCOSITY DIA OF FLANGE REMARKS



Heat Jacket Magnetic Drive Pump

RMD/RMI-B 3.2-1000m3/h 8-150m <=350℃ 1.1-315kW <=30*10-6m2/s 32-300mm

Liquids without hard particles and fibers, pressure: 1.6MPa, if pressure higher than 1.6MPa need to be customized



Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 0MODELS



MODEL Q
(m3/h)
H
(m)
n
(r/min)
η
(%)
MOTOR POWER
(Kw)
32-20-125 3.2 20 2900 16 YX90S-2 1.5
32-20-160 3.2 32 2900 18 YX90L-2 2.2
40-25-105 6.3 12.5 2900 20 YX90S-2 1.5
40-25-125 6.3 20 2900 24 YX90L-2 2.2
40-25-160 6.3 32 2900 26 YX100L-2 3
40-25-200 6.3 50 2900 25 YX132S1-2 5.5
40-25-250 6.3 80 2900 20 YX160M1-2 11
50-32-125 12.5 20 2900 34 YX100L-2 3
50-32-160 12.5 32 2900 39 YX112M-2 4
50-32-200 12.5 50 2900 34 YX132S2-2 7.5
50-32-250 12.5 80 2900 25 YX160M2-2 15
65-50-125 25 20 2900 45 YX112M-2 4
65-50-160 25 32 2900 45 YX132S2-2 7.5
65-40-200 25 50 2900 35 YX160M2-2 15
65-40-250 25 80 2900 37 YX160L-2 18.5
65-40-315 25 125 2900 27 YX200L2-2 37
80-65-125 50 20 2900 55 YX132S2-2 7.5
80-65-160 50 32 2900 55 YX160M1-2 11
80-50-200 50 50 2900 50 YX160L-2 18.5
80-50-250 50 80 2900 45 YX200L1-2 30
80-50-315 50 125 2900 40 YX250M-2 55
100-80-125 100 20 2900 61 YX160M1-2 11
100-80-160 100 32 2900 61 YX160L-2 18.5
100-65-200 100 50 2900 60 YX200L1-2 30
100-65-250 100 80 2900 56 YX250M-2 55
100-65-315 100 125 2900 50 YX280M-2 90

Remarks: Power higher than 0.75KW can be equipped with explosion-proof motor, the material options of wetted parts are 304, 304L, 316, 316L, for special requirements can be customized, please consult our sales to get more support





Stainless Steel Mag Drive Centrifugal Pump For Low Temperature High Percentage Sulfuric Acid 8



More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
