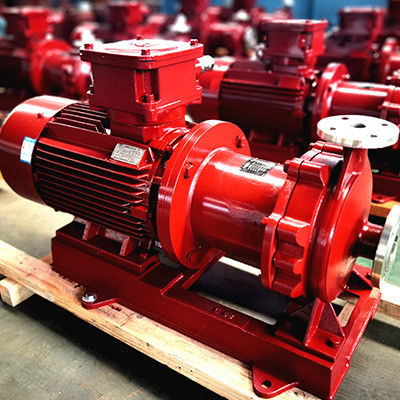

Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline

Product Details
Place of Origin: China
Brand Name: RICITE
Model Number: RMD-P
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: WOODEN CASE
Delivery Time: 5-8 work dayes
Payment Terms: T/T, , L/C
Supply Ability: 50 sets per day

Detail Information

Place of Origin China Brand Name RICITE
Model Number RMD-P Product Name: RMD Stainless Steel Magnetic Drive Centrifugal Pump
Color: Red,Blue Customized Caliber: 32-300mm
Flow: 3.2-1000m3/h Lift: 8-150m
Temperature: -20℃ - +120℃(Customize As Needed+120 ℃ -+350 ℃) Pressure: 0-1.6Mpa(Customized 1.6-30Mpa As Needed)
Power: 1.1-315KW Application: Petroleum, Chemical, Pharmaceutical, Electroplating
High Light:

Quinoline Magnetic Drive Pump

,

Quinoline Magnetic Drive Centrifugal Pump

,

SS Magnetic Drive Centrifugal Pump

Product Description

RMD stainless steel magnetic pumps





Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0DESCRIPTION

RMD series stainless steel magnetic drive centrifugal pump, the main feature is using magnetic coupling to transmit power, when the motor drives the outer magnetic rotor to rotate, the magnetic field line pass through the gap and the can, acting on the inner magnetic rotor, so that the pump rotors and the motor rotate synchronously, no mechanical contact to transmit torque, in the pump shaft power input section, because the liquid is enclosed in the can, that solves the unavailable defeats of running, falling, dripping, leaking. This type of pump is suitable for the transportation of toxic, harmful, flammable, purified and other corrosive fluids. And it is the ideal pump for creating no leakage, no pollution work environment.



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0APPLICATION

RMD series magnetic drive pump is suitable for petroleum, chemical, pharmaceutical, electroplating, food, film and printing, water treatment, national defense, and other industries, is the ideal pump for conveying flammable, explosive, aggressive, toxic, purified, and various corrosive fluids.

The wetted parts of RMD series magnetic drive pump are made of stainless steel, and these pumps are suitable to transport medium with pressure no more than 1.6Mpa, temperature no more than 120℃, and viscosity no more than 30x 10-6 mz V / S, no solid particles and fibers. Please contact sales to get more support if the pressure is more than 1. 6MPa, or the temperature exceeds 120 degrees, or need heat jacket, etc.



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0FEATURES

1, CFD (Computational Fluid Dynamics) design of hydraulic components, wide flow channel, high efficiency, low NPSHr performance, less radial force.

2. The wetted parts are shaped by precise casting mold, smooth inner wall of the flow channel, and high efficiency.

3. Choose high performance NdFeB (neodymium iron boron) and SmCo (samarium cobalt) permanent magnets to ensure sufficient magnetic torque.

4. Low eddy current can design, so that the efficiency of the pump is higher.

5. Modular parts design, easy to maintain.

6. Plain bearing and shaft adopted high wear resistance, high corrosive-resistance SSiC, unique double bearing positioning structure design, with dynamic lubrication structure, to ensure the stable performance and prolong the service life.

7. Special lubrication and cooling design: the transporting medium is used to take away the heat generated by the eddy current on the can and lubricate the plain bearing, so that the axial force of the pump can automatically balance and ensure the safe running of the pump.

8. The can made of high-quality stainless steel with advanced technology, drain medium completely (when stop to repair) and automatic empty (when to restart).

9. Heat jacket, cooling jacket, or high temperature jacket could to be added if the application required.



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0PERAMETERS:

NAME TYPE FLOW HEAD working temperature power speed DIA OF FLANGE pressure

Stainless

steel magnetic

drive pump

RMD 3.2-1000m3/h 8-150m -20~350℃ 1.1-315kw 2900/1450 r/min 32-200mm 0-1.6Mpa (1.6-30 Mpa need to be customized) Rotate clockwise from the motor side)



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 4

Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0MODEL CODING:



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 6



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 0MODELS:



Model Q
(m3/h)
H
(m)
n
(r/min)
η
(%)
Motor power
(Kw)
RMD32-20-125 3.2 20 2900 16 YX490S-2 1.5
RMD32-20-160 3.2 32 2900 18 YX490L-2 2.2
RMD40-25-105 6.3 12.5 2900 20 YX490S-2 1.5
RMD40-25-125 6.3 20 2900 24 YX490L-2 2.2
RMD40-25-160 6.3 32 2900 26 YX4100L-2 3
RMD40-25-200 6.3 50 2900 26 YX4132S1-2 5.5
RMD40-25-250 6.3 80 2900 20 YX4160M1-2 11
RMD50-32-125 12.5 20 2900 34 YX4100L-2 3
RMD50-32-160 12.5 32 2900 39 YX4112M-2 4
RMD50-32-200 12.5 50 2900 31 YX4132S2-2 7.5
RMD50-32-250 12.5 80 2900 25 YX4160M2-2 15
RMD65-50-125 25 20 2900 45 YX4112M-2 4
RMD65-50-160 25 32 2900 45 YX4132S2-2 7.5
RMD65-40-200 25 50 2900 35 YX4160M2-2 15
RMD65-40-250 25 80 2900 37 YX4160L-2 18.5
RMD65-40-315 25 125 2900 27 YX4200L2-2 37
RMD80-65-125 50 20 2900 55 YX4132S2-2 7.5
RMD80-65-160 50 32 2900 55 YX4160M1-2 11
RMD80-50-200 50 50 2900 50 YX4160L-2 18.5
RMD80-50-250 50 80 2900 45 YX4200L1-2 30
RMD80-50-315 50 125 2900 40 YX4250M-2 55
RMD100-80-125 100 20 2900 61 YX4160M1-2 11
RMD100-80-160 100 32 2900 61 YX4160L-2 18.5
RMD100-65-200 100 50 2900 60 YX4200L1-2 30
RMD100-65-250 100 80 2900 56 YX4250M-2 55
RMD100-65-315 100 125 2900 50 YX4280M-2 90



Stainless Steel Magnetic Drive Centrifugal Pump for Quinoline 8



More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
