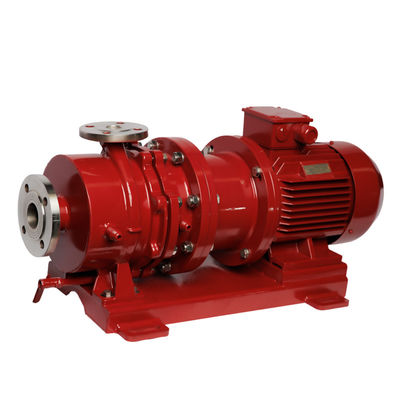

Stainless Steel Mag-drive Centrifugal Pump for Low Corrosive Chemicals
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | RMD-B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | RMD-B | Product Name: | Heat Jacket Magnetic Drive Pump |
| Color: | Red,blue Customized | Caliber: | 32-300mm |
| Flow: | 3.2-1000m3/h | Lift: | 8-150m |
| Temperature: | ～+350℃ | Pressure: | 0-1.6Mpa（Customized 1.6-30Mpa As Needed） |
| Power: | 1.1-315KW | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
| VISCOSITY: | <=30*10-6m2/s | High Light: | magnetic drive circulation pump,centrifugal irrigation pump,stainless steel circulating pump |
Product Description
Heat Jacket Magnetic Drive Pump
Description
Heat jacket magnetic drive pump is a new type of magnetic pump, based on ordinary magnetic pump, absorbing the advantages of high-temperature pump, which is widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, and other industries, and can transport flammable, explosive, toxic, purified, and other fluids with continuous work temperature lower than 350 °C
Features
1. Heat jacket magnetic drive pump adopts high-performance NdFeB (neodymium iron boron) and SmCo (samarium cobalt) permanent magnets to ensure sufficient magnetic torque;
2. The can structure is designed as unequal sections, which reduces 1/2 damage caused by eddy current compared with the equal sections can;
3. The unique new heat jacket design ensures that the medium will not condense during the transportation process, and when the temperature is too high, the cooling water can be introduced into the jacket to take away over heat, which can effectively ensure the normal operation of the motor and magnet;
4. Adopt hydrodynamic lubrication bearing, which is more reliable than the concentric bearing of the original magnetic pump, longer service life;
5. Adopt a new type heat jacket to ensure that the medium will not crystallize during transportation;
6. Automatic stop device for breaking flow can be an option according to customers’ requirements to avoid the dry run of the pump.
Application
Chemical, pharmaceutical, electroplating, petroleum, environmental protection, rare earth separation, smelting, pickling in automobile manufacturing and other fields.
Model Coding
PARAMETERS
| NAME | TYPE | FLOW | HEAD | WORK TEMPERATURE | MOTOR POWER | VISCOSITY | DIA OF FLANGE | REMARKS |
|
Heat Jacket Magnetic Drive Pump |
RMD/RMI-B | 3.2-1000m3/h | 8-150m | <=350℃ | 1.1-315kW | <=30*10-6m2/s | 32-300mm |
Liquids without hard particles and fibers, pressure: 1.6MPa, if pressure higher than 1.6MPa need to be customized |
MODELS
| MODEL | Q (m3/h) |
H (m) |
n (r/min) |
η (%) |
MOTOR | POWER (Kw) |
| 32-20-125 | 3.2 | 20 | 2900 | 16 | YX90S-2 | 1.5 |
| 32-20-160 | 3.2 | 32 | 2900 | 18 | YX90L-2 | 2.2 |
| 40-25-105 | 6.3 | 12.5 | 2900 | 20 | YX90S-2 | 1.5 |
| 40-25-125 | 6.3 | 20 | 2900 | 24 | YX90L-2 | 2.2 |
| 40-25-160 | 6.3 | 32 | 2900 | 26 | YX100L-2 | 3 |
| 40-25-200 | 6.3 | 50 | 2900 | 25 | YX132S1-2 | 5.5 |
| 40-25-250 | 6.3 | 80 | 2900 | 20 | YX160M1-2 | 11 |
| 50-32-125 | 12.5 | 20 | 2900 | 34 | YX100L-2 | 3 |
| 50-32-160 | 12.5 | 32 | 2900 | 39 | YX112M-2 | 4 |
| 50-32-200 | 12.5 | 50 | 2900 | 34 | YX132S2-2 | 7.5 |
| 50-32-250 | 12.5 | 80 | 2900 | 25 | YX160M2-2 | 15 |
| 65-50-125 | 25 | 20 | 2900 | 45 | YX112M-2 | 4 |
| 65-50-160 | 25 | 32 | 2900 | 45 | YX132S2-2 | 7.5 |
| 65-40-200 | 25 | 50 | 2900 | 35 | YX160M2-2 | 15 |
| 65-40-250 | 25 | 80 | 2900 | 37 | YX160L-2 | 18.5 |
| 65-40-315 | 25 | 125 | 2900 | 27 | YX200L2-2 | 37 |
| 80-65-125 | 50 | 20 | 2900 | 55 | YX132S2-2 | 7.5 |
| 80-65-160 | 50 | 32 | 2900 | 55 | YX160M1-2 | 11 |
| 80-50-200 | 50 | 50 | 2900 | 50 | YX160L-2 | 18.5 |
| 80-50-250 | 50 | 80 | 2900 | 45 | YX200L1-2 | 30 |
| 80-50-315 | 50 | 125 | 2900 | 40 | YX250M-2 | 55 |
| 100-80-125 | 100 | 20 | 2900 | 61 | YX160M1-2 | 11 |
| 100-80-160 | 100 | 32 | 2900 | 61 | YX160L-2 | 18.5 |
| 100-65-200 | 100 | 50 | 2900 | 60 | YX200L1-2 | 30 |
| 100-65-250 | 100 | 80 | 2900 | 56 | YX250M-2 | 55 |
| 100-65-315 | 100 | 125 | 2900 | 50 | YX280M-2 | 90 |
|
Remarks: Power higher than 0.75KW can be equipped with explosion-proof motor, the material options of wetted parts are 304, 304L, 316, 316L, for special requirements can be customized, please consult our sales to get more support |
||||||
