Canned Motor Pump for Chemical Wastewater Treatment
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | Z |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | Z | Product Name: | Z Series Standard Chemical Canned MotorPump |
| Color: | Silver Customized | Flow: | 300m3/h |
| Lift: | 200m | Temperature: | ～+350℃ |
| Power: | 132kW | Viscosity: | 100mm/s |
| Pressure: | 2.5MPa | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
| Highlight: | canned drive pump,canned centrifugal pump,centrifugal pump in wastewater treatment |
||
Product Description

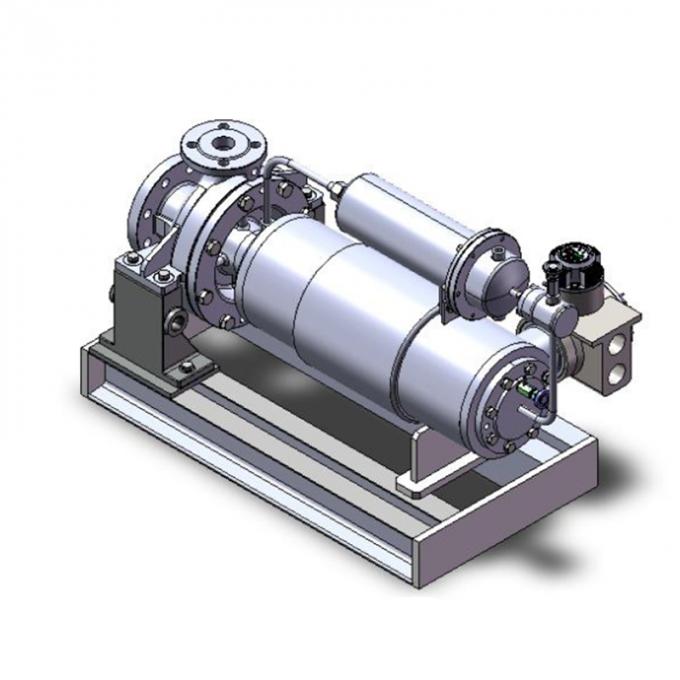

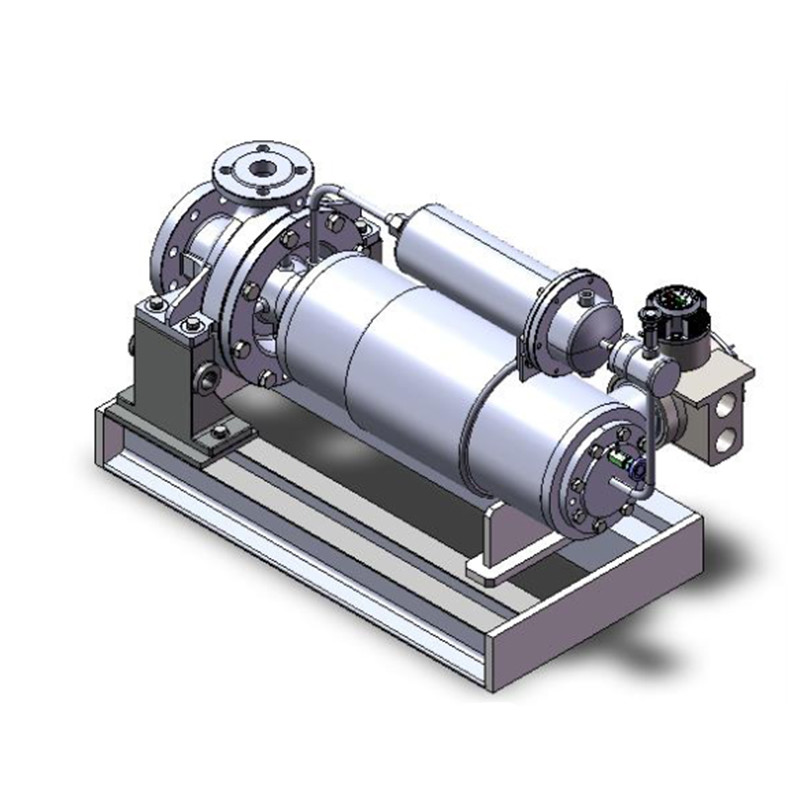

Z Series Standard Chemical Canned MotorPump
DESCRIPTION
The chemical Canned Motor Pump is composed of a shielding motor and a pump as a whole, with the inner surface of the stator and the outer surface of the rotor covered by a thin-walled non-magnetic corrosion-resistant metal thin cylinder. The stator winding and rotor core are completely separated from the conveying medium and will not be corroded by the conveying liquid. In addition, the impeller is directly installed at the shaft extension end of the rotor, and the entire rotor body is immersed in the conveying liquid without any rotating parts that are connected to the outside world. It is an absolutely leak free structure.
It adopts international standard design, the maximum operating flow is 1200m3/h, the maximum head is 600m, the temperature range is -120-350°C, and the maximum pressure of the system design is 20MPa.
ADVANTAGES
(1) Long service life, automatic hydraulic thrust balance system combined with silicon carbide bearings to obtain high service life;
(2) High efficiency, optimized motor design and high-efficiency hydraulic research, achieved excellent energy efficiency;
(3) High reliability, advanced processing technology, high-tech CNC equipment and perfect testing to ensure the stability of product performance;
(4) Monitor bearing wear to realize online monitoring and automatic control;
(5) Secondary sealing to ensure the safety to the environmental even in the accident situation.
FEATURES
Characteristics of canned pump:
1. The integrated structure of the motor and pump adopts static sealing, making the electric pump completely leak free.
2. The fully enclosed and leak free structure can transport toxic and harmful liquid substances.
3. The use of a shielded water-cooled motor and the elimination of a cooling fan make the pump operate with low noise and silence, suitable for situations with high environmental noise requirements.
4. The use of graphite sliding bearings lubricated with conveying media reduces operating noise and eliminates the need for manual refueling, reducing maintenance costs. In recent years, bearing materials have also increased, such as silicon carbide (SIC) and superhard, with a service life better than graphite bearings.
5. The vertical structure can be installed on the pipeline like a valve, making installation convenient and fast. During maintenance, only the motor and impeller need to be pulled out without the need to remove the pipeline.
6. It can be installed and operated in conjunction with shock absorbers or shock pads, making the noise of the electric pump lower during operation.
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER | VISICOSITY | PRESSURE | REMARKS |
| Z Series Standard Chemical Canned MotorPump | Z Series standard | 300m3/h | 200m | ～+350℃ | 132kW | 100mm/s | 2.5MPa |
C series standard chemical canned motor pump is horizontal, single-stage, single-suction centrifugal pump; Its dimensions and performance comply with DIN24256/ISO2858 standards. Suitable for low-temperature or high-temperature liquids; neutral or corrosive liquids; with or without solid liquids. Widely used in chemical, petrochemical, refinery industry |
MODEL DESCRIPTION
MATERIALS
| CODE | 4 | 5 | 6 | 7 | |
| WETTED PARTS | 304 | 304L | 316 | 316L | |
| Gasket | Pump | High temperature | Graphite winded | ||
| Standard | PTFE | ||||
| Motor | PTFE | ||||
| Can | Hastelloy Alloy -C | Hastelloy Alloy -C | |||
| Shaft | 304/301 | 304L | 316 | 316L | |
| Shaft sleeve, Thrust ring | Stellite | ||||
| SSiC | |||||
| Bearing | Graphite impregnated furan resin, SSiC | ||||
SECTIONAL DRAWING
MODELS
|
No. |
Pump Model |
Speed | Power (KW) | |||
| n=2900r/min | 介质密度(Medium Density(g/cm)) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 1 | 4025R | 3.6 | 20 | 1.1 | 1.5 | 2.2 |
| 6 | 19 | 1.5 | 2.2 | 2.2 | ||
| 7.2 | 17 | 1.5 | 2.2 | 2.2 | ||
| 2 | 4025S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 5.5 | 6.3 | ||
| 3 | 4025T | 5.4 | 62 | 5.5 | 6.3 | 7.5 |
| 9 | 60 | 5.5 | 7.5 | 11 | ||
| 10 | 58 | 5.5 | 7.5 | 11 | ||
| 4 | 5040R | 7.2 | 17 | 1.1 | 1.5 | 2.2 |
| 12 | 15 | 1.5 | 2.2 | 3 | ||
| 13.5 | 14.5 | 1.5 | 2.2 | 3 | ||
| 5 | 5040S | 7.2 | 33 | 2.2 | 3 | 5.5 |
| 12 | 29 | 3 | 3.7 | 5.5 | ||
| 14.4 | 27 | 3 | 3.7 | 5.5 | ||
| 6 | 5040T | 10.8 | 52 | 5.5 | 7.5 | 11 |
| 18 | 49 | 6.3 | 11 | 15 | ||
| 21 | 46 | 7.5 | 11 | 15 | ||
| 7 | 5040U | 7.2 | 102 | 15 | 18.5 | 22 |
| 12 | 98 | 15 | 18.5 | 25 | ||
| 14.4 | 94 | 15 | 18.5 | 25 | ||
| 8 | 6550R | 14.4 | 17 | 2.2 | 3 | 5.5 |
| 24 | 14 | 3 | 3.7 | 5.5 | ||
| 28.8 | 12 | 3 | 3.7 | 5.5 | ||
| 9 | 6550S | 14.4 | 30 | 3.7 | 5.5 | 6.3 |
| 24 | 27 | 3.7 | 5.5 | 7.5 | ||
| 28.8 | 24 | 5.5 | 6.3 | 7.5 | ||
| 10 | 6550T | 14.4 | 52 | 7.5 | 11 | 15 |
| 24 | 50 | 11 | 15 | 18.5 | ||
| 28.8 | 46 | 11 | 15 | 18.5 | ||
| 11 | 6550U | 21.6 | 86 | 18.5 | 22 | 30 |
| 36 | 80 | 18.5 | 25 | 37 | ||
| 40 | 78 | 22 | 30 | 37 | ||
|
No. |
Pump Model |
Speed | Power(Kw) | |||
| n=2900r/min | (Medium Density(g/cm3) | |||||
| Flow m3/h | Head m | 1 | 1.35 | 1.84 | ||
| 12 | 8065R | 28.8 | 15 | 3 | 5.5 | 6.3 |
| 48 | 12 | 3.7 | 5.5 | 6.3 | ||
| 55 | 10 | 3.7 | 5.5 | 6.3 | ||
| 13 | 8065S | 36 | 30 | 6.3 | 11 | 15 |
| 60 | 22 | 7.5 | 11 | 15 | ||
| 66 | 18 | 7.5 | 11 | 15 | ||
| 14 | 8065T | 30 | 53 | 11 | 15 | 22 |
| 50 | 50 | 15 | 18.5 | 25 | ||
| 58 | 42 | 15 | 18.5 | 25 | ||
| 15 | 8065U | 28.8 | 80 | 18.5 | 22 | 30 |
| 48 | 76 | 22 | 25 | 37 | ||
| 57.6 | 70 | 22 | 30 | 45 | ||
| 16 | 1080S | 54 | 24 | 11 | 15 | 18.5 |
| 90 | 20 | 11 | 15 | 18.5 | ||
| 102 | 16 | 11 | 15 | 18.5 | ||
| 17 | 1080T | 60 | 50 | 22 | 30 | 37 |
| 100 | 45 | 25 | 30 | 45 | ||
| 120 | 36 | 25 | 30 | 45 | ||
| 18 | 1080U | 60 | 80 | 37 | 45 | 55 |
| 100 | 72 | 45 | 55 | 75 | ||
| 120 | 64 | 45 | 55 | 75 | ||
| 19 | 1080V | 54 | 120 | 55 | 65 | 90 |
| 90 | 100 | 55 | 75 | 110 | ||
| 108 | 80 | 55 | 75 | 110 | ||
| 20 | 1210T | 108 | 45 | 37 | 45 | 55 |
| 180 | 38 | 45 | 45 | 75 | ||
| 200 | 35 | 45 | 45 | 75 | ||
| 21 | 1210U | 108 | 80 | 55 | 65 | 90 |
| 180 | 70 | 65 | 75 | 110 | ||
| 216 | 60 | 65 | 90 | 110 | ||
| 22 | 1210V | 90 | 128 | 75 | 90 | 132 |
| 150 | 120 | 90 | 132 | 200 | ||
| 170 | 110 | 110 | 145 | 200 | ||
More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
Website: www.ricitepump.com
