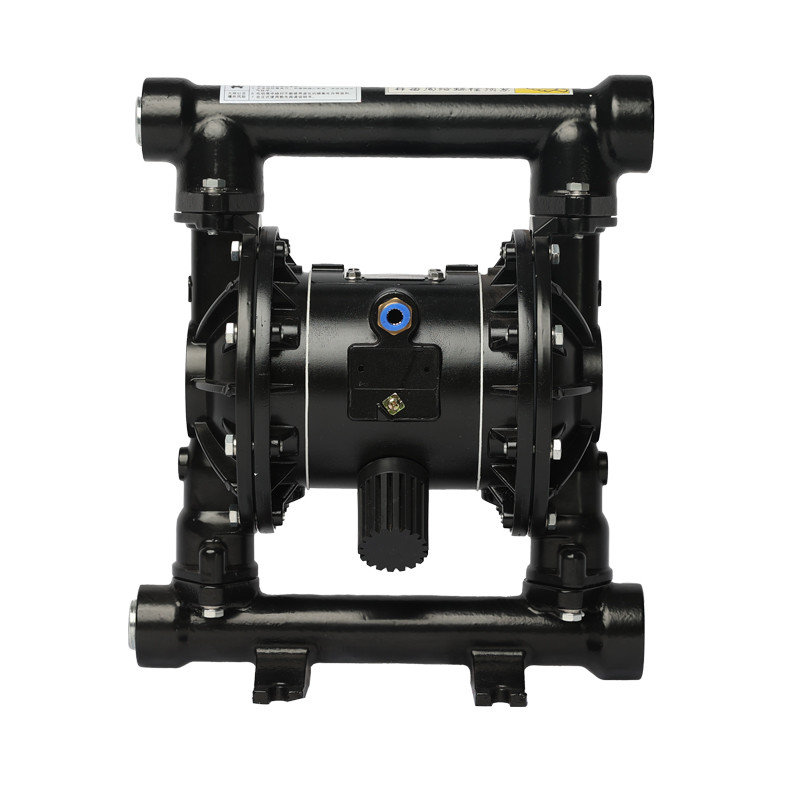

Air Operated Diaphragm Pump For Sewage Water
| Place of Origin: | Zhejiang |
| Brand Name: | Ricite |
|
Detail Information |
|||
| Place of Origin | Zhejiang | Brand Name | Ricite |
|---|---|---|---|
| Connection: | Thread, Flange | Air Consumption: | 252L/min-9100L/min |
| Flow: | 1-60m3/h | Suction: | 6m |
| Head: | 70m-84m | Drive: | Pneumatic |
| Solids: | 1-10mm | High Light: | Sewage Water Air Operated Diaphragm Pump,Air Operated Diaphragm Pump |
Product Description
Product Description:
Diaphragm Pump is a reliable, durable, and versatile pump that offers outstanding performance. It features a connection of threaded or flanged with a pneumatic drive that offers a suction of up to 6 meters. It is built to handle solids ranging from 1-10mm and has an air consumption range of 252L/min to 9100L/min. What makes the Diaphragm Pump stand out from the rest is its ability to run dry without causing any damage and its self-priming capabilities. Additionally, its versatility makes it suitable for a wide range of applications. It is the ideal choice for customers looking for a dependable and reliable pump that is built to last.
Features:
- Product Name: Diaphragm Pump
- Air consumption: 252L/min-9100L/min
- Connection: Thread, Flange
- Solids: 1-10mm
- Flow: 1-60m3/h
- Drive: Pneumatic
- Self-priming: Able to pump out liquids from dry suction lift conditions
- Solid-laden: Suitable for pumping fluids containing suspended solids
- High Viscosity: Able to handle fluids with high viscosity
Technical Parameters:
| Parameter | Value |
|---|---|
| Suction | 6m |
| Head | 70m-84m |
| Connection | Thread, Flange |
| Solids | 1-10mm |
| Drive | Pneumatic |
| Air consumption | 252L/min-9100L/min |
| Flow | 1-60m3/h |
| Special Features | Solid-laden, Self-priming |
Applications:
Ricite diaphragm pump is a reliable, versatile and cost-effective solution for high viscous and dry-run applications. It is designed with low flashing, low pressure and high pressure for low flow and high flow purposes. It can handle solids up to 1-10mm and provide suction up to 6m. Its head range from 70m-84m. This diaphragm pump is made in Zhejiang and can be connected with thread and flange. It is an ideal choice for all kinds of industrial applications that require low-pressure and high-flow.
Customization:
We provide customized services for Diaphragm Pumps with Ricite brand name and Zhejiang as its origin. The connection can be either Thread or Flange, and the flow can be 1-60m3/h. It can be driven by Pneumatic and the head is 70m-84m. The air consumption is 252L/min-9100L/min. It has self-priming, high viscosity, self-priming and explosion-proof features.
Support and Services:
We provide technical support and service for our Diaphragm Pump. Our technical support team is available to answer any questions and provide assistance with troubleshooting and installation. We also offer extended warranty and repair services for our Diaphragm Pump. If you need any assistance with your Diaphragm Pump or need to order spare parts, please contact us directly.
Packing and Shipping:
Packaging and shipping for diaphragm pump:
- The diaphragm pump is packed and shipped in a standard cardboard box.
- The box is lined with foam to protect the diaphragm pump from any external shock.
- The package is clearly labeled and identified.
- The package is shipped with a tracking number for easy tracking.
FAQ:
Q1: What is a diaphragm pump?
A1: A diaphragm pump, also known as a membrane pump, is a positive displacement pump with a diaphragm as its check valve. It is made by Ricite, a professional manufacturer based in Zhejiang, China.
Q2: What is the benefit of using a diaphragm pump?
A2: Diaphragm pumps are perfect for transferring liquids and gases with a minimum amount of contamination, as it only touches the liquid or gas as it passes through. It also offers a low-maintenance design with a longer service life.
Q3: What type of diaphragm pump does Ricite offer?
A3: Ricite offers a wide range of diaphragm pumps, including electric diaphragm pumps, manual diaphragm pumps, and self-priming diaphragm pumps.
Q4: What type of fluids can the diaphragm pump handle?
A4: Ricite’s diaphragm pumps can handle a variety of fluids, ranging from water-based solutions and chemicals to food-grade liquids and acids.
Q5: What is the maximum pressure a Ricite diaphragm pump can handle?
A5: The maximum pressure a Ricite diaphragm pump can handle depends on the model, but it can range from 0.2MPa to 2.5MPa.
