Model Number | RMD-FT | Product Name: | RMD Fluoropolymer-Lined Magnetic Drive Centrifugal Pump |
Color: | Red,Blue Customized | Caliber: | 32-300mm |
Flow: | 3.2-1000m3/h | Lift: | 8-150m |
Temperature: | -20℃ - +150℃(Customize As Needed+150 ℃ -+350 ℃) | Pressure: | 0-1.6Mpa(Customized 1.6-30Mpa As Needed) |
Power: | 1.1-315KW | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
Highlight: | small magnetic drive pump,centrifugal sealless magnetic drive pump,stainless steel mag drive pump |

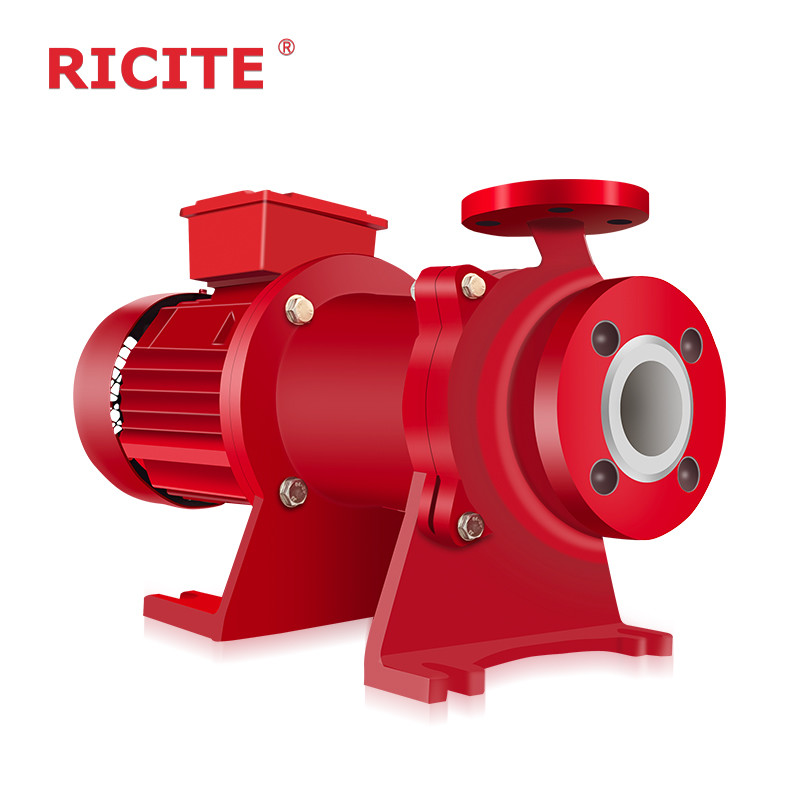

RMD Fluoropolymer-Lined Magnetic Drive Centrifugal Pump
DESCRIPTION
The magnetic pump adopts the magnetic coupling to transmit power, completely leak-free, when the motor drives the outer magnetic rotor to rotate, the magnetic field lines pass through the gap and the can, acting on the inner magnetic rotor, so that the pump rotors rotate synchronously with the motor, and transmits torque without mechanical contact. Because the medium is enclosed in the can, no leakage which reduces pollution, saves energy, and protects the health of the staff on the production line.
FEATURES
1. The lining of the pump, the impeller and the can are made of thermoset PFA/FEP, without impurity precipitation, suitable for transporting high-purity, highly corrosive chemical fluids;
2. The pump frame is made of ductile iron, and the flanges follow standards, high mechanical strength, can withstand heavy pipeline load;
3. The wetted parts are lined with PFA/FEP material, smooth flow channel, superior hydraulic performance, less hydraulic friction loss and high efficiency;
4. The shaft, bearing sleeve,rotor and stator are all made of SSiC, with features of high hardness, high wear resistance and high corrosion resistance;
5. The unique spiral groove design of the inner hole of the bearing sleeve makes the lubrication of the plain bearing more convenient and easier to take away the heat generated by friction during running;
6. An insert can is added to the can, so it can withstand higher system pressure, and can eliminate the heat generated by the magnetic eddy current caused by the metal sleeve;
7. The inner and outer magnets are made of NdFeB and samarium cobalt materials, and the surface of the magnet is as high as 3600 gauss, which can smoothly transmit the torque of the motor to the impeller, and will not slip under large flow conditions, and also can prevent the rotor in the impeller from contacting the rear thrust ring, thereby preventing the melting of fluoropolymer parts due to the heat generated by fiction, and ensuring the stable running of the magnetic pump in high corrosive application;
8. The whole pump adopts a back-pull-out structure, easy to maintain and replace parts, and there is no need to disassemble the pipeline.
APPLICATION
Fluoropolymer-lined magnetic pump is suitable for transporting high corrosive medium without solid particles, under temperature below 150 °C, like sulfuric acid, hydrochloric acid, nitric acid, strong alkali, aqua regia, hydrofluoric acid, strong oxidant, reducing agent, etc. It is widely used in chemical, petroleum, oil refining, nuclear power, chemicals, electroplating, electrolysis, polyester, fertilizer, pharmaceutical, nuclear power, etc. industries, ideal for delivering highly toxic, flammable, explosive, purified fluids.
MODEL CODING
PARAMETERS
NAME | TYPE | FLOW | HEAD | WORK TEMPERATURE | POWER | SPEED | DIA OF FLANGE | REMARKS |
Fluoropolymer-lined magnetic drive pumps | RMD | 1.8-400m3/h | 8-80m | -20~150℃ | 0.12-132kw | 2900/1450 r/min | 12-200mm | For special requirements can be customized |
MODELS
Model | Q | H | n | η | Power of Shaft | NPSH | Power of Motor(kW) | |||
Viscosity of Medium(g/cm³) | ||||||||||
m³/h | L/s | m | r/min | % | kW | m | 1 | 1.35 | 1.84 | |
32-25-125 | 2.4 4 4.8 |
0.67 1.11 1.33 |
20.6 20 18 |
2900 | 24 30 28 |
0.56 0.73 0.84 |
2.5 2.5 3.0 |
0.75 | 1.1 | 1.5 |
32-25-160 | 2.4 4 4.8 |
0.67 1.11 1.33 |
33 32 30 |
2900 | 20 26 23 |
1.08 1.34 1.71 |
2.5 2.5 3.0 |
2.2 | 3 | 4 |
32-25-200 | 2.4 4 4.8 |
0.67 1.11 1.33 |
52.5 50 48 |
2900 | 18 20 19 |
1.91 2.72 3.30 |
2.5 2.5 3.0 |
4 | 5.5 | 7.5 |
40-25-120 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
16 15 13.5 |
2900 | 35 42 40 |
0.47 0.61 0.70 |
2.5 2.5 3.0 |
0.75 | 1.1 | 1.5 |
40-25-125 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
18.5 17.5 16 |
2900 | 28 36 33 |
0.68 0.83 1.00 |
2.5 2.5 3.0 |
1.1 | 1.5 | 2.2 |
40-25-160 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
34.5 32 28 |
2900 | 25 23 28 |
1.42 1.66 2.06 |
2.5 2.5 3.0 |
3 | 4 | 5.5 |
40-25-200 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
52.5 50 48 |
2900 | 26 28 27 |
2.08 3.06 3.66 |
2.5 2.5 3.0 |
5.5 | 7.5 | 11 |
40-32-115 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
16 15 13.5 |
2900 | 35 42 40 |
0.47 0.61 0.70 |
2.5 2.5 3.0 |
0.75 | 1.1 | 1.5 |
40-32-145 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
26 25 22.5 |
2900 | 31 42 44 |
0.76 0.95 1.20 |
2.5 2.5 3.0 |
1.5 | 2.2 | 3 |
40-40-125 | 3.78 6.3 7.56 |
1.05 1.75 2.10 |
18.5 17.5 16 |
2900 | 28 36 33 |
0.68 0.83 1.00 |
2.5 2.5 3.0 |
1.1 | 1.5 | 2.2 |
50-32-125 | 7.5 12.5 15 |
2.08 3.47 4.17 |
22 20 18.5 |
2900 | 45 56 52 |
1.00 1.22 1.45 |
2.5 2.5 3.0 |
1.5 | 2.2 | 3 |
50-32-160 | 7.5 12.5 15 |
2.08 3.47 4.17 |
34.5 32 29 |
2900 | 33 44 45 |
2.14 2.48 2.63 |
2.5 2.5 3.0 |
3 | 4 | 5.5 |
50-32-200 | 7.5 12.5 15 |
2.08 3.47 4.17 |
52.5 50 48 |
2900 | 28 35 30 |
3.83 4.87 6.54 |
2.5 2.5 3.0 |
7.5 | 11 | 15 |
50-32-250 | 7.5 12.5 15 |
2.08 3.47 4.17 |
82 80 78.5 |
2900 | 24 32 34 |
6.98 8.51 9.43 |
2.5 2.5 3.0 |
15 | 18.5 | 22 |
50-40-125 | 7.5 12.5 15 |
2.08 3.47 4.17 |
22 20 18.5 |
2900 | 45 56 52 |
1.00 1.22 1.45 |
2.5 2.5 3.0 |
1.5 | 2.2 | 3 |
50-40-160 | 7.5 12.5 15 |
2.08 3.47 4.17 |
34.5 32 29 |
2900 | 33 44 45 |
2.14 2.48 3.02 |
2.5 2.5 3.0 |
3 | 4 | 5.5 |
65-40-200 | 15 25 30 |
4.17 6.94 8.33 |
53 50 47 |
2900 | 36 48 47 |
6.02 7.10 8.18 |
2.5 2.5 3.0 |
11 | 15 | 18.5 |
65-40-250 | 15 25 30 |
4.17 6.94 8.33 |
81.2 80 78.4 |
2900 | 33 45 47 |
10.06 12.11 13.64 |
2.5 2.5 3.0 |
18.5 | 22 | 30 |
65-50-125 | 15 25 30 |
4.17 6.94 8.33 |
22 20 18.5 |
2900 | 45 55 50 |
2.00 2.48 3.02 |
2.5 2.5 3.0 |
4 | 5.5 | 7.5 |
Model | Q | H | n | η | Power of Shaft | NPSH | Power of Motor (kW) | |||
Viscosity of Medium (g/cm³) | ||||||||||
m³/h | L/s | m | r/min | % | kW | m | 1 | 1.35 | 1.84 | |
65-50-150 | 12 20 24 |
3.33 5.56 6.67 |
27 25 23 |
2900 | 42 52 48 |
2.10 2.62 3.13 |
2.5 2.5 3.0 |
4 | 5.5 | 7.5 |
65-50-160 | 15 25 30 |
4.17 6.94 8.33 |
34.2 32 30 |
2900 | 44 55 52 |
3.18 3.96 4.72 |
2.5 2.5 3.0 |
5.5 | 7.5 | 11 |
80-50-200 | 30 50 60 |
8.33 13.89 16.67 |
53 50 45.2 |
2900 | 44 58 56 |
9.85 11.75 13.20 |
3.0 3.0 3.5 |
15 | 18.5 | 30 |
80-50-250 | 30 50 60 |
8.33 13.89 16.67 |
83.5 80 75 |
2900 | 45 53 55 |
15.15 20.55 22.27 |
3.0 3.0 3.5 |
30 | 37 | 45 |
80-65-125 | 30 50 60 |
8.33 13.89 16.67 |
22.5 20 17.6 |
2900 | 54 65 59 |
3.41 4.19 4.88 |
3.0 3.0 3.5 |
7.5 | 11 | 15 |
80-65-160 | 30 50 60 |
8.33 13.89 16.67 |
34 32 28.4 |
2900 | 50 62 58 |
5.56 7.03 8.01 |
3.0 3.0 3.5 |
11 | 15 | 18.5 |
100-65-200 | 60 100 120 |
16.67 27.78 33.33 |
56 59 57 |
2900 | 56 59 57 |
15.31 23.07 27.51 |
4.0 4.0 4.5 |
30 | 37 | 45 |
100-65-250 | 60 100 120 |
16.67 27.78 33.33 |
45 53 51 |
2900 | 45 53 51 |
31.21 41.09 47.72 |
4.0 4.0 4.5 |
55 | 75 | 90 |
100-80-125 | 60 100 120 |
16.67 27.78 33.33 |
58 69 65 |
2900 | 58 69 65 |
6.48 7.90 8.10 |
3.0 3.0 3.5 |
11 | 15 | 18.5 |
100-80-160 | 60 100 120 |
16.67 27.78 33.33 |
56 65 62 |
2900 | 56 65 62 |
10.22 13.42 14.77 |
3.0 3.0 3.5 |
18.5 | 22 | 30 |
125-100-125 | 96 160 192 |
26.67 44.44 53.33 |
56 65 52 |
2900 | 56 65 62 |
10.56 13.42 14.35 |
3.0 3.0 3.5 |
18.5 | 22 | 30 |
125-100-160 | 96 160 192 |
26.67 44.44 53.33 |
60 68 32 |
2900 | 60 68 63 |
15.70 20.52 23.52 |
3.0 3.0 3.5 |
30 | 37 | 45 |
125-100-200 | 96 160 192 |
26.67 44.44 53.33 |
56 65 60 |
2900 | 56 65 60 |
25.67 33.50 40.07 |
4.5 4.5 5.0 |
45 | 55 | 75 |
125-100-250 | 96 160 192 |
26.67 44.44 53.33 |
57 68 66 |
2900 | 57 68 66 |
41.26 51.24 57.81 |
3.7 4.5 5.5 |
75 | 90 | 110 |
150-125-250 | 120 200 240 |
33.33 55.56 66.67 |
62 73 70 |
1450 | 62 73 70 |
13.07 14.92 16.80 |
3.0 3.0 3.5 |
22 | 30 | 37 |
150-125-315 | 120 200 240 |
33.33 55.56 66.67 |
57 68 65 |
1450 | 57 68 65 |
20.63 25.62 28.65 |
3.0 3.0 3.5 |
37 | 45 | 55 |
150-125-400 | 120 200 240 |
33.33 55.56 66.67 |
49 58 54 |
1450 | 49 58 54 |
38.00 46.93 53.23 |
3.0 3.0 3.5 |
75 | 90 | 110 |
200-150-250 | 240 400 460 |
66.67 111.11 127.78 |
58 70 66 |
1450 | 58 70 66 |
25.91 31.11 34.15 |
4.0 4.0 4.5 |
45 | 55 | 75 |
200-150-315 | 240 400 460 |
66.67 111.11 127.78 |
58 70 66 |
1450 | 58 70 66 |
39.65 49.78 55.97 |
4.0 4.0 4.5 |
75 | 90 | 110 |
200-150-400 | 240 400 460 |
66.67 111.11 127.78 |
58 72 69 |
1450 | 58 72 69 |
62.86 75.62 85.30 |
4.0 4.0 4.5 |
90 | 110 | 132 |
Remarks: Please contact sales to get more information.
Corrosion resistance Sheet
Corrosion Resistance Data |
|||||||
Medium |
Concentration ≤% |
Temperature | Medium |
Concentration ≤% |
Temperature | ||
≤25℃ | ≤95% | ≤25% | ≤95℃ | ||||
H2SO4 | 98 | √ | √ | KOH | 50 | √ | √ |
HNO3 | √ | × | NH2H2O | √ | √ | ||
HCL | √ | √ | Ba(OH)2 | 50 | √ | √ | |
H3PO4 | √ | √ | Mg(OH)3 | √ | √ | ||
HF* | √ | √ | AL(OH)3 | √ | √ | ||
HBr | √ | √ | LiOH | √ | √ | ||
HI | √ | √ | C1H2O | √ | √ | ||
hydrocyanic acid | √ | √ | Br2 | √ | √ | ||
H2SO3 | √ | √ | I12 | √ | √ | ||
HNO2 | √ | √ | NH3 | √ | √ | ||
HCLO* | √ | √ | CH30H | √ | √ | ||
HCL04 | √ | √ | CH3CH2OH | √ | √ | ||
H2CrO4 | 80 | √ | √ | C4H100 | √ | √ | |
aqua regia* | √ | √ | HCHO | √ | √ | ||
CH3COOH | √ | √ | CH3CHO | √ | √ | ||
HCOOH | √ | √ | C4H8C120 | √ | √ | ||
CH4H8O2 | √ | √ | C6H7N | √ | √ | ||
C5H1002 | √ | √ | CH3C1 | √ | √ | ||
C18H3402 | √ | √ | CH2CL2 | √ | √ | ||
C6H5COOH | √ | √ | C2H4CL2 | √ | √ | ||
NaOH | 50 | √ | √ | C2H4CL4 | √ | √ | |
indicates good corrosion resistance; × indicates some degrees of corrosion; * Indicates materials should be selected; Unmarked indicates any concentration is acceptable. |
