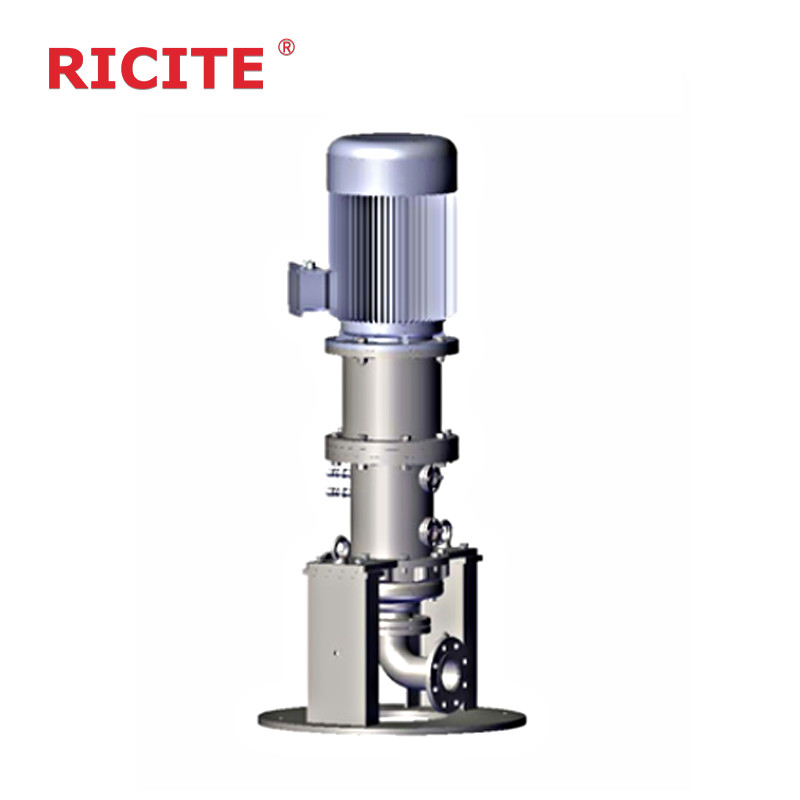

Vertical Stainless Steel Magnetic Drive Pumps High Temperature
| Place of Origin: | China |
| Brand Name: | RICITE |
| Certification: | CE |
| Model Number: | NCH |
| Minimum Order Quantity: | 2 sets |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 5 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Certification | CE | Model Number | NCH |
| Product Name: | NCH Series Magnetic Drive PumpS | Color: | Red,blue Customized |
| Caliber: | 32-300mm | Flow: | 3.2-1000m3/h |
| Lift: | 8m-150m | Temperature: | -20℃ - +120℃（Customize As Needed+120 ℃ -+350 ℃） |
| Pressure: | 0-1.6Mpa（Customized 1.6-30Mpa As Needed） | Power: | 1.1-315KW |
| Application: | Petroleum, Chemical, Pharmaceutical, Electroplating | High Light: | magnetic drive pumps high temperature,vertical magnetic drive pumps,vertical magnetic pump |
Product Description

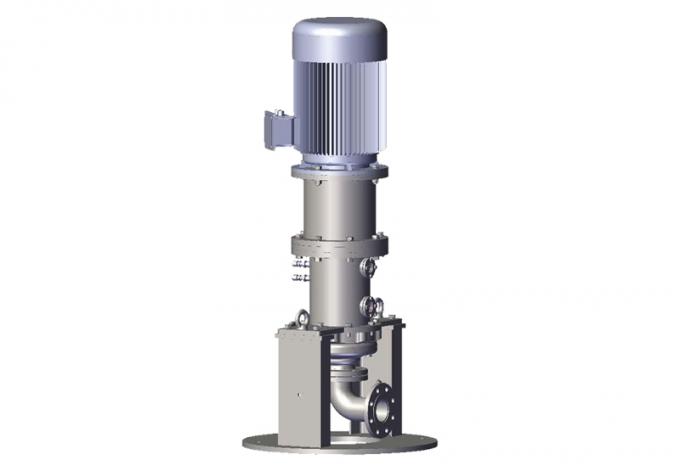

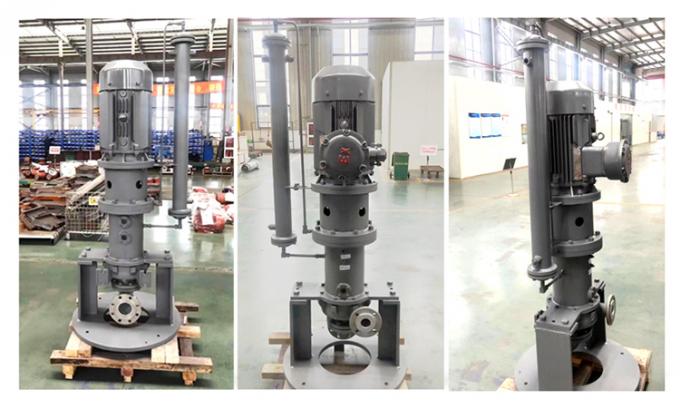

NCH Series Magnetic Drive Pumps
Description
The magnetic drive pumps produced by Ricite (Zhejiang) Science & Technology Co., Ltd. have been highly recommended by many domestic and overseas customers due to their excellent performance. Ricite manufactures pumps with more than 30 years production experience and advanced technology. And Ricite pumps can be tailor-made according to customers’ application.
NCH series magnetic pumps adopt good quality raw materials, combined with leading design and advanced manufacturing technology, which are suitable for transporting toxic, corrosive, flammable and explosive fluids of petrochemical, chemical, pharmaceutical, and other industries. The NCH series pumps can greatly improve the working efficiency and safety, reduce maintenance costs and pollution to the environment.
Features
Unique sealing design: mechanical seal + N2 seal + magnetic seal, promote safety;
No wear of the back blade of the impeller, because no contact between shaft and medium;
N2 gas seal of pump cavity: the medium will not contact the bearing due to the nitrogen gas buffer when the pump is running/stopping;
Leak-free because of magnetic drive system;
Less spare parts, the impeller is the only spare parts;
Longer service life of the bearing which lubricated by grease
APPLICATIONS
NCH series Magnetic drive pumps are suitable for variety of difficult and complex fluids delivery, can be self-venting & cavitation-free, with advantages of transporting solid-laden fluids, dry running, self-regulation, wear resistance, low maintenance cost and high safety.
More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
