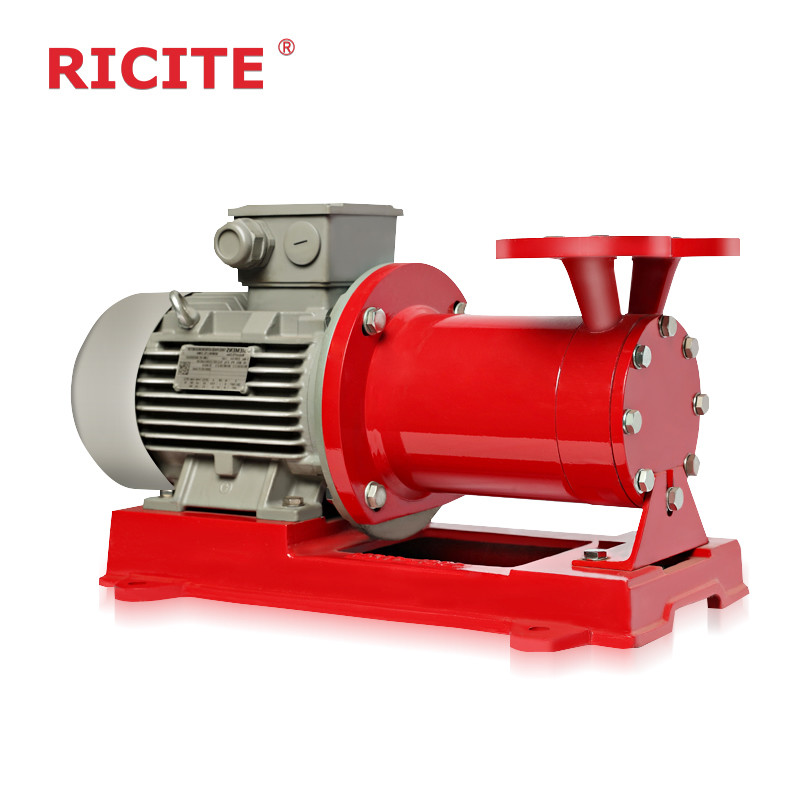

Magnetic Drive Vortex Pump for Low Flow & High Head Chemicals
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | RMW |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | RMW | Product Name: | RMW SERIES MAGNETIC DRIVE VORTEX PUMP |
| Color: | Red,Blue Customized | DIA OF FLANGE: | 32-65mm |
| Flow: | 0.72-14.4m3/h | Lift: | 20-120m |
| Temperature: | ～+350℃ | Pressure: | 0- -1.6Mpa |
| Power: | 1.1-15kW | Application: | Petroleum, Chemical, Pharmaceutical, Electroplating |
| High Light: | Self-priming Mag Drive Turbine Pump,mag drive regenerative turbine pump,Magnetic Drive Vortex Pump |
||
Product Description

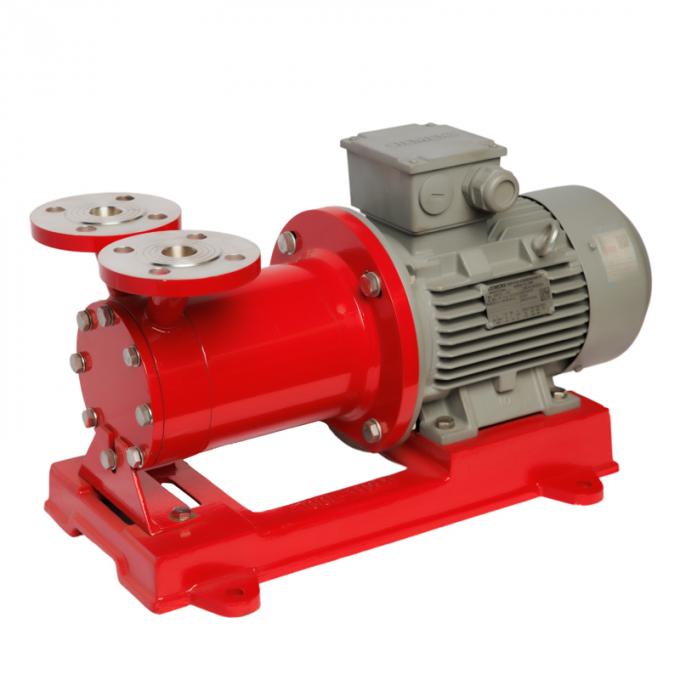

RMW SERIES MAGNETIC DRIVE VORTEX PUMP
DESCRIPTION
RMW series magnetic vortex pump has two characteristics of magnetic drive pump and vortex pump at the same time; Magnetic drive vortex pumps belong to a new generation of vortex pumps.
FEATURES
Simple structure, clean appearance, saving space, low noise, light weight, stable running, easy to use and maintain, mainly used in chemical and pharmaceutical industrial processes to transport low flow, high lift applications.
1. Excellent hydraulic model abroad, high efficiency.
2. Imported Hastelloy C4 can, adopts roto-molding process, high precision, good quality, no welding defects, high magnetic permeability, strong corrosion resistance, fully increase the reliable and stable performance of the magnetic pump.
3. The plain bearing made of silicon carbide (SSIC, SIC30), which has high strength, good wear resistance, strong corrosion resistance, and the service life is 10 times more than that of graphite bearings; The rolling bearings are imported SKF bearings.
4. The magnetic material is made of high performance SmCo (Sm2Co17) permanent magnets, the maximum irreversible demagnetization temperature can reach 450 °C.
5. After reaching the rated speed, the axial force is automatically balanced by hydraulic equalization.
6. Compact structure, modular design, convenient to install and maintain.
7. Low operating cost and maintenance cost.
APPLICATIONS
It is widely used in chemical, pharmaceutical, petroleum industries, to transport acid, alkaline, oily, purified, toxic, aggressive liquids, as well as recycling water. It’s ideal for transporting permeable, flammable, and explosive liquids.
PARAMETERS
| NAME | TYPE | FLOW | HEAD | WORK TEMPERATURE | POWER | DIA OF FLANGE | PRESSURE | REMARKS |
| Magnetic Drive Vortex Pump | RMW | 0.72-14.4m3/h | 20-120m | <=350℃ | 1.1-15kW | 20-65mm | 0- -1.6Mpa | These are standard models. For special requirements, can be customized. |
MODELS
| MODEL | Q (m3/h) |
H (m) |
n (r/min) |
η (%) |
POWER (Kw) |
| RMW20-20 | 0.72 | 20 | 2900 | 22 | 1.1 |
| RMW20-40 | 0.72 | 40 | 2900 | 18 | 1.1 |
| RMW20-65 | 0.72 | 65 | 2900 | 15 | 2.2 |
| RMW25-25 | 1.44 | 25 | 2900 | 26 | 1.1 |
| RMW25-40 | 1.44 | 40 | 2900 | 24 | 1.5 |
| RMW25-75 | 1.44 | 75 | 2900 | 20 | 4 |
| RMW32-30 | 2.88 | 30 | 2900 | 28 | 2.2 |
| RMW32-50 | 2.88 | 50 | 2900 | 26 | 3 |
| RMW32-75 | 2.88 | 75 | 2900 | 22 | 5.5 |
| RMW32-120 | 2.88 | 120 | 2900 | 18 | 7.5 |
| RMW40-40 | 5.4 | 40 | 2900 | 30 | 5.5 |
| RMW40-90 | 5.4 | 90 | 2900 | 26 | 11 |
| RMW50-45 | 9 | 45 | 2900 | 30 | 7.5 |
| RMW65-50 | 14.4 | 50 | 2900 | 35 | 15 |
|
Remarks: The materials of the wetted parts are 304, 304L, 316, 316L, and non-standard magnetic vortex pumps can be customized according to customer requirements. Please contact sales to get more information. |
|||||
More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
