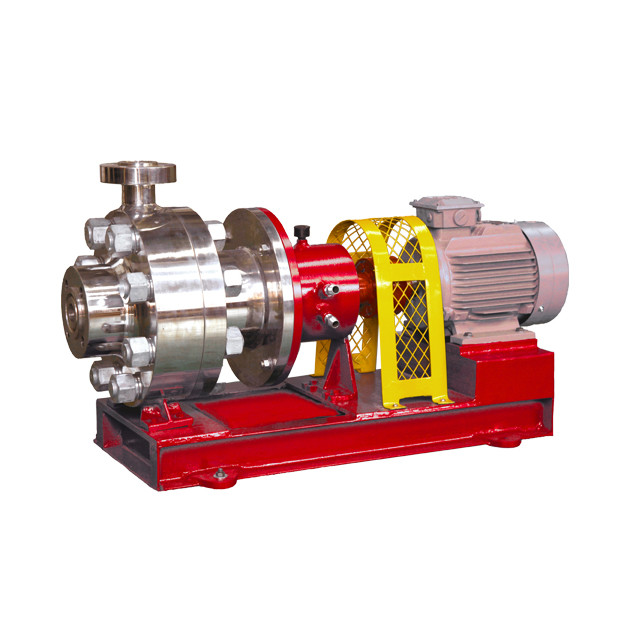

Magnetic Drive Centrifugal Pump for High Temperature Liquids

Product Details
Place of Origin: China
Brand Name: RICITE
Model Number: RMD/RMI-G
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: WOODEN CASE
Delivery Time: 5-8 work dayes
Payment Terms: T/T, L/C
Supply Ability: 5 sets per day

Detail Information

Place of Origin China Brand Name RICITE
Model Number RMD/RMI-G Product Name: HIGH PRESSURE MAGNETIC DRIVE PUMPS
Color: Red,blue Customized Caliber: 32-300mm
Flow: 3.2-1000m3/h Lift: 8-150m
Temperature: ~+350℃ Pressure: 0-1.6Mpa(Customized 1.6-30Mpa As Needed)
Power: 1.1-315KW Application: Petroleum, Chemical, Pharmaceutical, Electroplating
High Light:

centrifugal pump in oil and gas

,

high pressure magnetic drive pump

,

magnetic drive submersible pump

Product Description

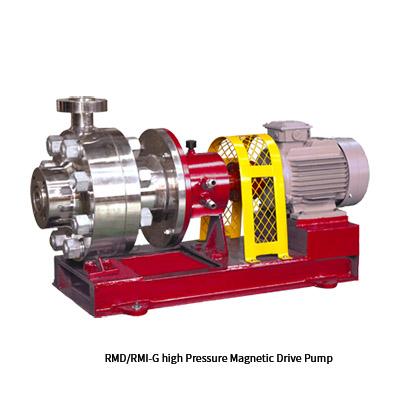

RMD/RMI-G HIGH PRESSURE MAGNETIC DRIVE PUMPS





Magnetic Drive Centrifugal Pump for High Temperature Liquids 0DESCRIPTION

The materials of high-temperature and high-pressure magnetic pumps are forged from different metal materials such as 304, 316, and 316L. It is divided into pump body, front cover, isolation sleeve, sliding bearing, shaft sleeve, thrust bearing, impeller, inner magnetic rotor, outer magnetic rotor, etc. The permanent magnets made of materials have a wide operating temperature range (-45-400 ℃) and high Coercivity. The high-temperature and high-pressure magnetic pump in the magnetic field has a wide range of applications, mainly used in petroleum, chemical industry, pharmacy, smelting, electroplating, environmental protection, food, film and television printing, water treatment, national defense and other industries. It is an ideal equipment for transporting high-temperature flammable, explosive, volatile, toxic, rare precious liquids and various corrosive liquids. It has good anisotropy and does not undergo demagnetization when approaching the same pole, making it a good magnetic field source.



When the pressure of the conveying medium is higher than 1.6 MPa, please contact sales for special requirements.





Magnetic Drive Centrifugal Pump for High Temperature Liquids 0Advantages



1. No leakage



The advantage of a high-pressure magnetic pump is that it has no leakage. It uses magnetic drive to achieve fluid transportation without the need for mechanical seals, thus eliminating leakage. This not only improves the purity and safety of the fluid, but also saves energy and maintenance costs.



2. Efficient and energy-saving



The high-pressure magnetic pump adopts magnetic drive, eliminating the need for mechanical transmission components of traditional pumps, thus reducing energy transmission losses and achieving efficient energy conservation. In addition, due to the absence of leakage, it can also reduce fluid circuit losses and further improve pump efficiency.



3. Corrosion resistance



Another advantage of high-pressure magnetic pumps is their corrosion resistance. It is made of corrosion-resistant materials and can operate safely in corrosive media such as acid and alkali. This not only extends the service life of the pump, but also reduces maintenance costs.





Magnetic Drive Centrifugal Pump for High Temperature Liquids 0APPLICATION



Petroleum, chemical, pharmaceutical, electroplating, environmental protection, food, film and printing, water treatment, national defense, and other industries, suitable for transporting flammable, explosive, aggressive, toxic, purified, and various corrosive fluids.







Magnetic Drive Centrifugal Pump for High Temperature Liquids 0PERAMETERS:

NAME TYPE FLOW HEAD WORK TEMPERATURE MOTOR POWER VISCOSITY DIA OF FLANGE REMARKS
HIGH TEMPERATURE MAGNETIC DRIVE PUMP RMD/RMI-G 3.2-1000m3/h 8-150m <=350℃ 1.1-315kW <=30*10-6m2/s 32-300mm Liquids without hard particles and fibers, pressure: 1.6MPa, if pressure higher than 1.6MPa need to be customized





Magnetic Drive Centrifugal Pump for High Temperature Liquids 4



Magnetic Drive Centrifugal Pump for High Temperature Liquids 0MODEL CODING:



Magnetic Drive Centrifugal Pump for High Temperature Liquids 6



Magnetic Drive Centrifugal Pump for High Temperature Liquids 0MODELS:



Model Q
(m3/h)
H
(m)
n
(r/min)
η
(%)
Motor power
(Kw)
32-20-125 3.2 20 2900 16 YX490S-2 1.5
32-20-160 3.2 32 2900 18 YX490L-2 2.2
40-25-105 6.3 12.5 2900 20 YX490S-2 1.5
40-25-125 6.3 20 2900 24 YX490L-2 2.2
40-25-160 6.3 32 2900 26 YX4100L-2 3
40-25-200 6.3 50 2900 26 YX4132S1-2 5.5
40-25-250 6.3 80 2900 20 YX4160M1-2 11
50-32-125 12.5 20 2900 34 YX4100L-2 3
50-32-160 12.5 32 2900 39 YX4112M-2 4
50-32-200 12.5 50 2900 31 YX4132S2-2 7.5
50-32-250 12.5 80 2900 25 YX4160M2-2 15
65-50-125 25 20 2900 45 YX4112M-2 4
65-50-160 25 32 2900 45 YX4132S2-2 7.5
65-40-200 25 50 2900 35 YX4160M2-2 15
65-40-250 25 80 2900 37 YX4160L-2 18.5
65-40-315 25 125 2900 27 YX4200L2-2 37
80-65-125 50 20 2900 55 YX4132S2-2 7.5
80-65-160 50 32 2900 55 YX4160M1-2 11
80-50-200 50 50 2900 50 YX4160L-2 18.5
80-50-250 50 80 2900 45 YX4200L1-2 30
80-50-315 50 125 2900 40 YX4250M-2 55
100-80-125 100 20 2900 61 YX4160M1-2 11
100-80-160 100 32 2900 61 YX4160L-2 18.5
100-65-200 100 50 2900 60 YX4200L1-2 30
100-65-250 100 80 2900 56 YX4250M-2 55
100-65-315 100 125 2900 50 YX4280M-2 90



Remarks: Power higher than 0.75KW can be equipped with explosion-proof motor, the material options of wetted parts are 304, 304L, 316, 316L, for special requirements can be customized, please consult our sales to get more support.











Magnetic Drive Centrifugal Pump for High Temperature Liquids 8



More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
