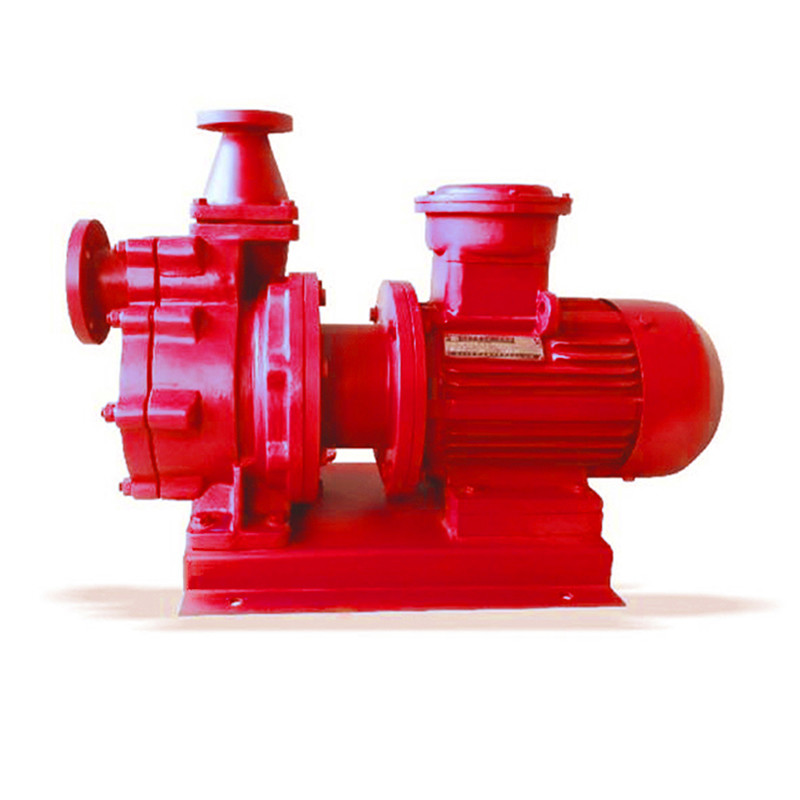

Self Priming Mag Drive Centrifugal Pump
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | RMZ-FT |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | RMZ-FT | Product Name: | RMZ Self-priming Fluoropolymer-lined Magnetic Drive Pump |
| Color: | Red,Blue Customized | Caliber: | 32-100mm |
| Flow: | 3.2-100m3/h | Lift: | 20-50m |
| Temperature: | -20℃ ~ 100℃ | Pressure: | 0-1.6Mpa |
| Power: | 1.1-18.5KW | Application: | Chemical, Metallurgy, Pesticides, Acid, Alkali, Pulping, Acid Washing, Rare Earth Separation, Electroplating, Semi-conductor, And Other Industries |
| High Light: | Self Priming Magnetic Drive Pump,1.1 kw centrifugal pump,centrifugal pump for high viscous fluid |
||
Product Description
RMZ self-priming fluoropolymer-lined magnetic drive pump
DESCRIPTION
RMZ self-priming fluoropolymer-lined magnetic drive pump integrates fluoropolymer-lined magnetic drive pump and self-priming pump, and the superior is self-priming without leakage.
RMZ series self-priming fluoropolymer-lined magnetic drive pump adopts motor close-coupled structure, supported by intermediate bracket, compact structure, easy to dismantle and maintain, adopting high-performance magnets "NdFeB" to manufacture internal and external magnets, can made of imported PP/carbon fiber, avoiding the loss caused by eddy current, can be used to transport high concentration, like density greater than 1.84g/cm3 with strong corrosive liquids; the pump casings are made of FEP lined ductile cast iron , can withstand high pressure, and resist the corrosion of all strong acids and alkalis; The product combines the advantages of magnetic drive pump and self-priming pump, and is an extended product developed basing on RMD fluoropolymer-lined magnetic drive pump, the superior is leak-free, quieter running, and is a better replacement of submersible pumps.
APPLICATIONS
RMZ series of self-priming pump can be widely used in chemical, metallurgy, pesticides, acid, alkali, pulping, acid washing, rare earth separation, electroplating, semi-conductor, and other industries, It’s energy-saving and practical.
Applicable temperature of the pump: -20°C ~ 100°C
The parameter range is for standard models, for special requirement, please contact sales to get more information.
FEATURES
Self-priming magnetic drive pump integrates the excellent characteristics of magnetic drive pump, generally self-priming height up to 2-4 meters, fully combining the characteristics of self-priming pump and magnetic drive pump, not only has self-priming function, but also cancels the mechanical seal, the using of magnetic coupling makes it leak-free.
RMZ series magnetic drive pumps adopt a special back pull-out structure, which is easy to maintain, convenient to change wore parts.
The wetted part of the pump casing is made of fluoropolymer, the outer layer is made of metal, so the pump casing is enough to withstand the pressure and mechanical impact.
RMZ series fluoropolymer-lined self-priming magnetic drive pump is motor close-coupled, supported by the middle bracket, easy to install and dismantle, compact structure, energy-saving.

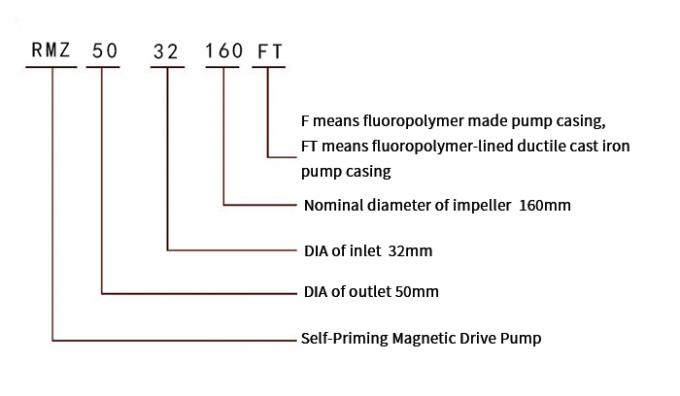

MODEL CODING
MODELS
| MODEL | Q | H | n | η | POWER OF SHAFT | NPSH | POWER OF MOTOR(kW) | |||
| DENSITY OF MEDIUM(g/cm³) | ||||||||||
| m³/h | L/s | m | r/min | % | kW | m | 1 | 1.35 | 1.84 | |
| RMZ32-25-125FT | 1.9 3.2 3.8 |
0.53 0.89 1.06 |
22 20 18.5 |
2900 | 23 30 31 |
0.49 0.58 0.62 |
2.57 3.0 3.5 |
1.1 | 1.5 | 2.2 |
| RMZ32-25-160FT | 1.9 3.2 3.8 |
0.53 0.89 1.06 |
34 32 29 |
2900 | 21 28 29 |
0.84 0.99 1.03 |
2.57 3.0 3.5 |
1.5 | 2.2 | 3 |
| RMZ40-25-125FT | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
2900 | 28 35 36 |
0.81 0.98 1.05 |
2.57 3.0 3.5 |
1.5 | 2.2 | 3 |
| RMZ40-25-160FT | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
2900 | 25 32 33 |
1.41 1.72 1.79 |
2.57 3.0 3.5 |
2.2 | 3 | 4 |
| RMZ50-32-125FT | 7.5 12.5 15 |
2.08 3.47 4.17 |
21.5 20 17.8 |
2900 | 30 42 43 |
1.49 1.62 1.63 |
3.5 3.5 4.0 |
2.2 | 3 | 4 |
| RMZ50-32-160FT | 7.5 12.5 15 |
2.08 3.47 4.17 |
33 32 30 |
2900 | 28 39 40 |
2.48 2.79 2.96 |
3.5 3.5 4.0 |
3 | 4 | 5.5 |
| RMZ50-32-200FT | 7.5 12.5 15 |
2.08 3.47 4.17 |
52 50 48 |
2900 | 21 31 32 |
5.1 5.49 6.13 |
3.5 3.5 4.0 |
5.5 | 7.5 | 11 |
| RMZ65-50-125FT | 17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
2900 | 40 51 52 |
2.25 2.67 2.91 |
3.5 3.5 4.0 |
3 | 4 | 5.5 |
| RMZ65-50-160FT | 17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.1 |
2900 | 32 43 44 |
4.34 5.07 5.48 |
3.5 3.5 4.0 |
5..5 | 7.5 | 11 |
| RMZ80-65-125FT | 35 50 65 |
9.72 13.9 18.1 |
21.5 20 18 |
2900 | 41 52 53 |
4.48 5.24 5.55 |
4.0 4.0 4.5 |
5..5 | 7.5 | 11 |
| RMZ80-65-160FT | 35 50 65 |
9.72 13.9 18.1 |
34.4 32 27.1 |
2900 | 36 48 49 |
7.72 9.08 9.67 |
4.0 4.0 4.5 |
11 | 15 | 18.5 |
Remarks:For special application, please contact sales to get more information.
