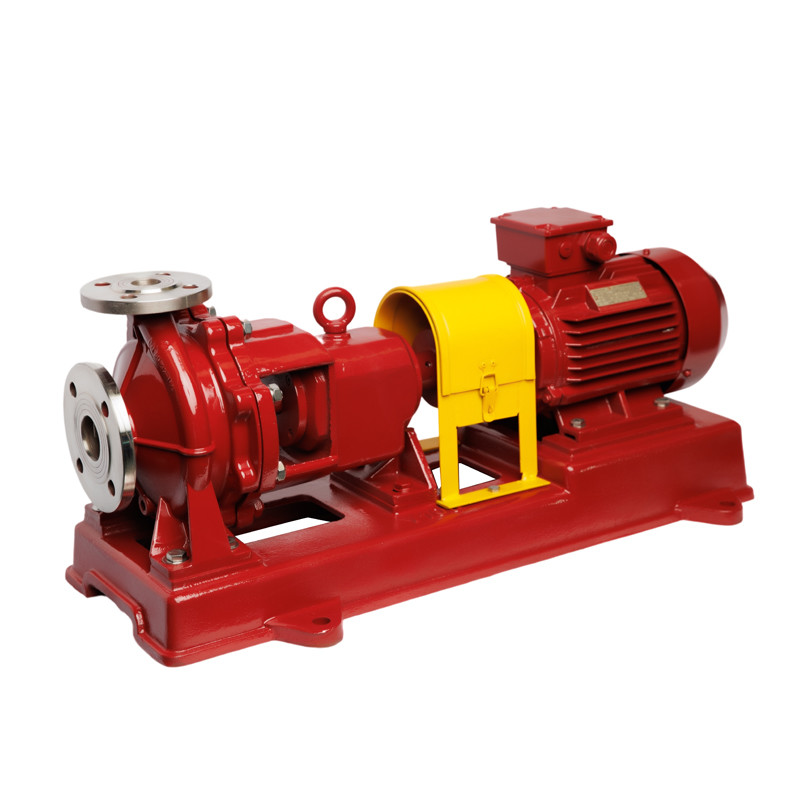

Magnetic Drive Centrifugal Pump for Sodium Hydroxide
| Place of Origin: | China |
| Brand Name: | RICITE |
| Model Number: | IH |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 work dayes |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | RICITE |
|---|---|---|---|
| Model Number | IH | Product Name: | IH Mechanical Centrifugal Pump |
| Color: | Red,Blue Customized | Caliber: | 25-300mm |
| Flow: | 3.75-460m3/h | Lift: | 4.5-132.5m |
| Temperature: | -20℃ - +120℃（Customize As Needed+120 ℃ -+350 ℃） | Pressure: | 1.6MPa（Customize As Needed） |
| Application: | Petroleum, Chemical, Pharmaceutical, Electroplating | High Light: | Mechanical centrifugal pump for slurry,brewery centrifugal pump,centrifugal force pump |
Product Description
IH SERIES CHEMICAL CENTRIFUGAL PUMPS
DESCRIPTION
5th generation IH series standard chemical centrifugal pump is a replacement to the old IH type chemical centrifugal pump. The performance parameters and installation dimensions of this series are the same as those old IH pump, and the products comply with GB5662-85 " End-suction centrifugal pumps(rating 16 bar)—Designation,nominal duty point and dimensions " standard.
FEATURES
1. Absorb the appearance design of XA type cantilever and adding reinforcement of the pump casing, so it is nice appearance, safe operation, reliability, and long service life.
2. Cantilever: four kinds of cantilever systems cover the whole series, and the cantilever systems are universal, guarantee the short lead time.
3. Shaft seal: according to customers’ applications, packing seal, single-end non-balancing mechanical seal, single-end balancing mechanical seal, double-end non-balancing mechanical seal, double-end balancing mechanical seal, can be selected. The seals are safe, reliable and has a long service life. Pump casing and impeller are precision cast by wax mold, which has higher efficiency than the old IH series.
4. Can be close-coupled as required. In general, the installation dimensions are the same as the old IH series, and the baseplate is made of precision cast molding process.
APPLICATIONS
It is widely used in petroleum, chemical, synthetic fiber, fertilizer, power station, metallurgy, food industries and hospital to transport corrosive or polluting medium without solids.

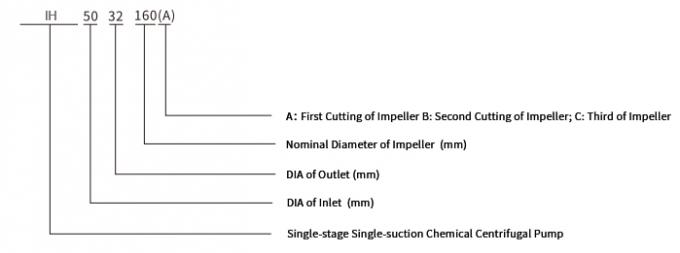

MODELS Coding
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER | SPEED | DIA OF FLANGE |
OPERATING PRESSURE |
| Chemical centrifugal pumps | IH | 3.75-460m3/h | 4.5-132.5m | -20~300℃ | 0.55-110KW | 2900/1450 r/min | 25-300mm | 1.6Mpa |
IH SERIES CHEMICALCENTRIFUGAL PUMPS
MODELS
| MODEL | FLOW | HEAD | POWER | SPEED | PRESSURE | |
| m³/h | L/s | (m) | (kw) | r/min | (V) | |
| 50-32-125 | 7.5 | 2.08 | 23 | 2.2 | 2900 | 380 |
| 6.3 | 1.74 | 5 | 0.55 | 1450 | 380 | |
| 50-32-160 | 12.5 | 3.47 | 32 | 3 | 2900 | 380 |
| 6.3 | 1.75 | 8 | 0.55 | 1450 | 380 | |
| 50-32-160A | 11.8 | 3.28 | 28 | 2.2 | 2900 | 380 |
| 5.9 | 1.69 | 7 | 0.55 | 1450 | 380 | |
| 50-32-200 | 12.5 | 3.47 | 50 | 5.5 | 2900 | 380 |
| 6.3 | 1.74 | 12.5 | 0.75 | 1450 | 380 | |
| 50-32-200A | 12 | 3.33 | 45 | 4 | 2900 | 380 |
| 6 | 1.5 | 11.5 | 0.55 | 1450 | 380 | |
| 50-32-250 | 12.5 | 3.47 | 80 | 11 | 2900 | 380 |
| 6.3 | 1.74 | 20 | 1.5 | 1450 | 380 | |
| 50-32-250A | 11.7 | 3.25 | 70 | 7.5 | 2900 | 380 |
| 5.9 | 1.69 | 17.5 | 1.5 | 1450 | 380 | |
| 65-50-125 | 25 | 6.98 | 20 | 3 | 2900 | 380 |
| 12.5 | 3.47 | 5 | 0.55 | 1450 | 380 | |
| 65-50-125A | 23.8 | 6.6 | 17.6 | 2.2 | 2900 | 380 |
| 11.9 | 3.3 | 4.4 | 0.55 | 1450 | 380 | |
| 65-50-160 | 25 | 6.98 | 32 | 5.5 | 2900 | 380 |
| 12.5 | 3.47 | 8 | 0.75 | 1450 | 380 | |
| 65-50-160A | 23.4 | 6.4 | 28 | 4 | 2900 | 380 |
| 11.7 | 3.25 | 7 | 0.55 | 1450 | 380 | |
| 65-40-200 | 25 | 6.94 | 50 | 11 | 2900 | 380 |
| 12.5 | 3.47 | 12.5 | 1.5 | 1450 | 380 | |
| 65-40-200A | 23.4 | 6.4 | 44 | 7.5 | 2900 | 380 |
| 11.7 | 3.25 | 11 | 1.1 | 1450 | 380 | |
| 65-40-250 | 25 | 6.94 | 80 | 15 | 2900 | 380 |
| 12.5 | 3.47 | 20 | 3 | 1450 | 380 | |
| 65-40-250A | 23.4 | 6.5 | 70 | 15 | 2900 | 380 |
| 11.7 | 3.25 | 17.5 | 2.2 | 1450 | 380 | |
| 65-40-315 | 25 | 6.94 | 125 | 30 | 2900 | 380 |
| 12.5 | 3.47 | 32 | 5.5 | 1450 | 380 | |
| 65-40-315A | 23.9 | 6.64 | 114 | 22 | 2900 | 380 |
| 11.9 | 3.3 | 28.5 | 4 | 1450 | 380 | |
| 80-65-125 | 50 | 13.9 | 20 | 5.5 | 2900 | 380 |
| 25 | 6.94 | 5 | 0.75 | 1450 | 380 | |
| 80-65-125A | 46.7 | 12.97 | 16.6 | 4 | 2900 | 380 |
| 23.4 | 6.4 | 4.3 | 0.55 | 1450 | 380 | |
| 80-65-160 | 50 | 13.9 | 32 | 11 | 2900 | 380 |
| 25 | 6.94 | 8 | 1.5 | 1450 | 380 | |
| 80-65-160A | 46.8 | 13 | 28 | 7.5 | 2900 | 380 |
| 23.4 | 6.4 | 7 | 1.5 | 1450 | 380 | |
| 80-50-200 | 50 | 13.9 | 50 | 15 | 2900 | 380 |
| 25 | 6.94 | 12.5 | 2.2 | 1450 | 380 | |
| 80-50-200A | 46.8 | 13 | 44 | 11 | 2900 | 380 |
| 23.4 | 6.4 | 11 | 2.2 | 1450 | 380 | |
| 80-50-250 | 50 | 13.9 | 80 | 30 | 2900 | 380 |
| 25 | 6.94 | 20 | 5.5 | 1450 | 380 | |
| 80-50-250A | 46.8 | 13 | 70 | 22 | 2900 | 380 |
| 23.4 | 6.5 | 17.5 | 3 | 1450 | 380 | |

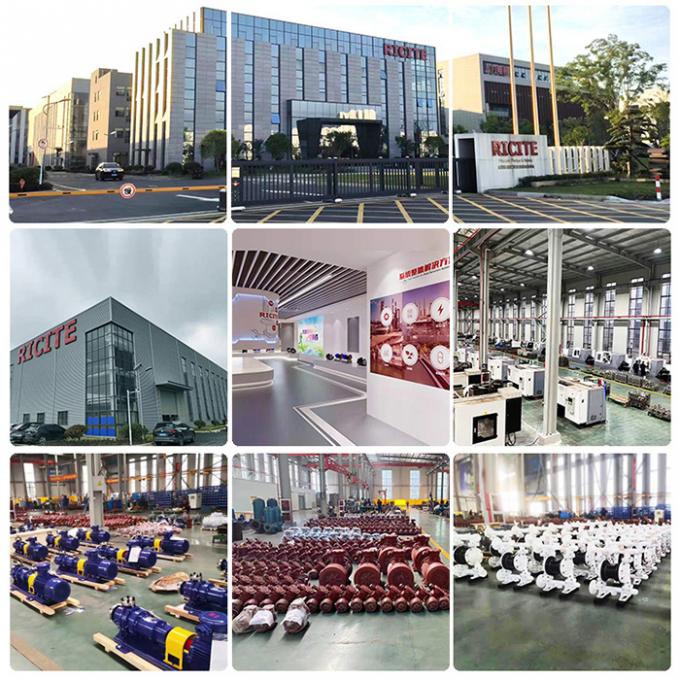

More than 10,000+ customers in chemical, pharmaceutical, new energy, electronic aluminum foil and other industries have chosen RICITE products (magnetic drive pumps, chemical canned motor pumps, diaphragm pumps, mechanical seal centrifugal pumps, etc.), and Ricite (Zhejiang) Science & Technology Co., Ltd. has taken part in editing several industry technical standards and specifications, and won the honors of high-tech, energy-saving products and many other patents. Ricite (Zhejiang) Science & Technology Co., Ltd. is committed to manufacturing leak-free pumps, and adheres to the goal of developing magnetic drive pumps, chemical canned motor pumps, and other pumps, and pursues the technological innovation and providing reliable, high cost-efficient and energy-saving pumps and services to customers.
