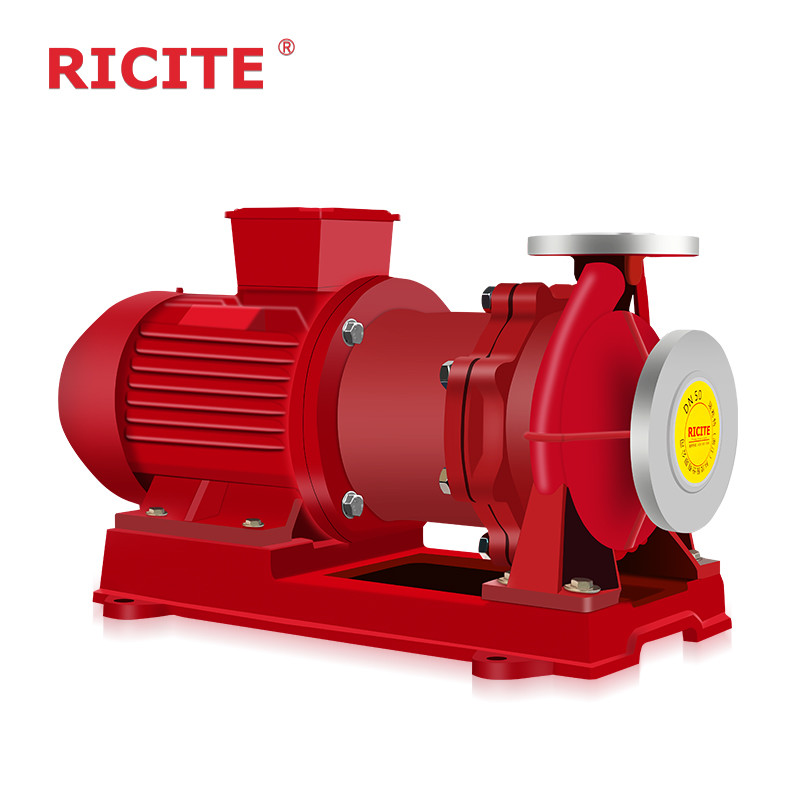

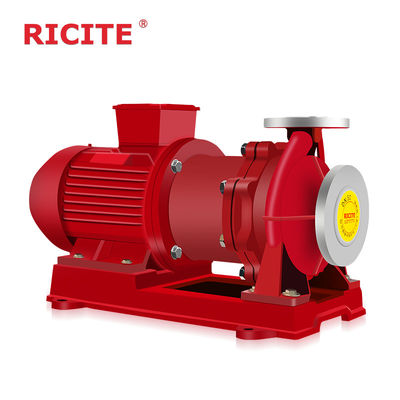

Magnetic Drive Centrifugal Pump for Ammonium Hydroxide

RMD stainless steel magnetic pumps

DESCRIPTION

RMD series stainless steel magnetic drive centrifugal pump, the main feature is using magnetic coupling to transmit power, when the motor drives the outer magnetic rotor to rotate, the magnetic field line pass through the gap and the can, acting on the inner magnetic rotor, so that the pump rotors and the motor rotate synchronously, no mechanical contact to transmit torque, in the pump shaft power input section, because the liquid is enclosed in the can, that solves the unavailable defeats of running, falling, dripping, leaking. This type of pump is suitable for the transportation of toxic, harmful, flammable, purified and other corrosive fluids. And it is the ideal pump for creating no leakage, no pollution work environment.

APPLICATION

RMD series magnetic drive pump is suitable for petroleum, chemical, pharmaceutical, electroplating, food, film and printing, water treatment, national defense, and other industries, is the ideal pump for conveying flammable, explosive, aggressive, toxic, purified, and various corrosive fluids.

The wetted parts of RMD series magnetic drive pump are made of stainless steel, and these pumps are suitable to transport medium with pressure no more than 1.6Mpa, temperature no more than 120℃, and viscosity no more than 30x 10-6 mz V / S, no solid particles and fibers. Please contact sales to get more support if the pressure is more than 1. 6MPa, or the temperature exceeds 120 degrees, or need heat jacket, etc.

FEATURES

1, CFD (Computational Fluid Dynamics) design of hydraulic components, wide flow channel, high efficiency, low NPSHr performance, less radial force.

2. The wetted parts are shaped by precise casting mold, smooth inner wall of the flow channel, and high efficiency.

3. Choose high performance NdFeB (neodymium iron boron) and SmCo (samarium cobalt) permanent magnets to ensure sufficient magnetic torque.

4. Low eddy current can design, so that the efficiency of the pump is higher.

5. Modular parts design, easy to maintain.

6. Plain bearing and shaft adopted high wear resistance, high corrosive-resistance SSiC, unique double bearing positioning structure design, with dynamic lubrication structure, to ensure the stable performance and prolong the service life.

7. Special lubrication and cooling design: the transporting medium is used to take away the heat generated by the eddy current on the can and lubricate the plain bearing, so that the axial force of the pump can automatically balance and ensure the safe running of the pump.

8. The can made of high-quality stainless steel with advanced technology, drain medium completely (when stop to repair) and automatic empty (when to restart).

9. Heat jacket, cooling jacket, or high temperature jacket could to be added if the application required.

PERAMETERS:

MODEL CODING:

MODELS:
